ELL-5PS820M

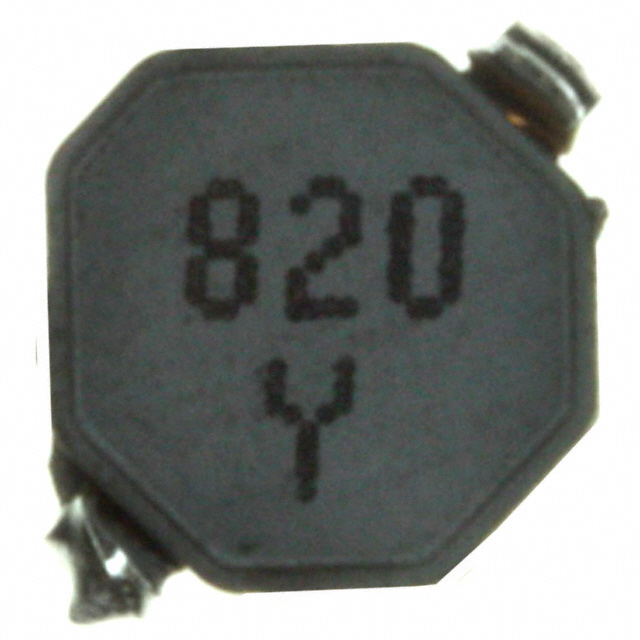

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-5PS820M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-5PS820M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-5PS820M |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 82UH 360MA 1.16 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.098 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-5PS820M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 82UH 360MA 1.16 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 212800 pcs | Data sheet | ELL-5PS Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | Shielding | Shielded |
| Series | S | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | ELL5PS820M PCD2241TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 82µH | Height - Seated (Max) | 0.079" (2.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 82µH Shielded Wirewound Inductor 360mA 1.16 Ohm Nonstandard |
| DC Resistance (DCR) | 1.16 Ohm | Current Rating | 360mA |
| Current - Saturation | 340mA |
