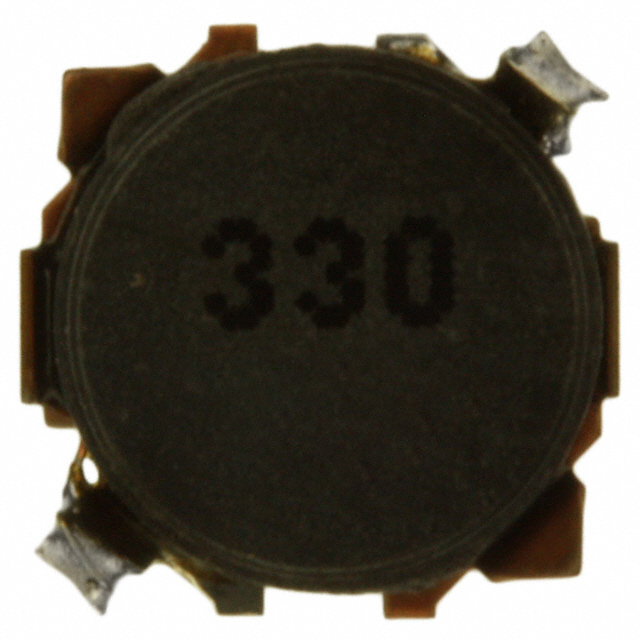

ELL-6GG330M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-6GG330M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-6GG330M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-6GG330M |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Description | FIXED IND 33UH 580MA 510 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.127 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-6GG330M | Manufacturer | Panasonic Electronic Components |
|---|---|---|---|
| Description | FIXED IND 33UH 580MA 510 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160627 pcs | Data sheet | ELL-6GG, PG Series |
| Category | Inductors, Coils, Chokes | Voltage - Breakdown | - |
| Usage | Shielded | Type | Wirewound |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Series | G |
| RoHS Status | Tape & Reel (TR) | Ratings | - |
| Polarization | Nonstandard | Other Names | ELL6GG330M PCD2253TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer Part Number | ELL-6GG330M | Height - Seated (Max) | 0.063" (1.60mm) |
| Hardware Type | 33µH | Frequency - Test | - |
| Frequency - Self Resonant | 510 mOhm | Expanded Description | 33µH Shielded Wirewound Inductor 580mA 510 mOhm Nonstandard |
| ESR (Equivalent Series Resistance) | ±20% | Diameter - Shoulder | - |
| Description | FIXED IND 33UH 580MA 510 MOHM | Delay Time | 100kHz |
| DC Resistance (DCR) | 490mA | Current Rating | 580mA |
| Current - Saturation | - |
