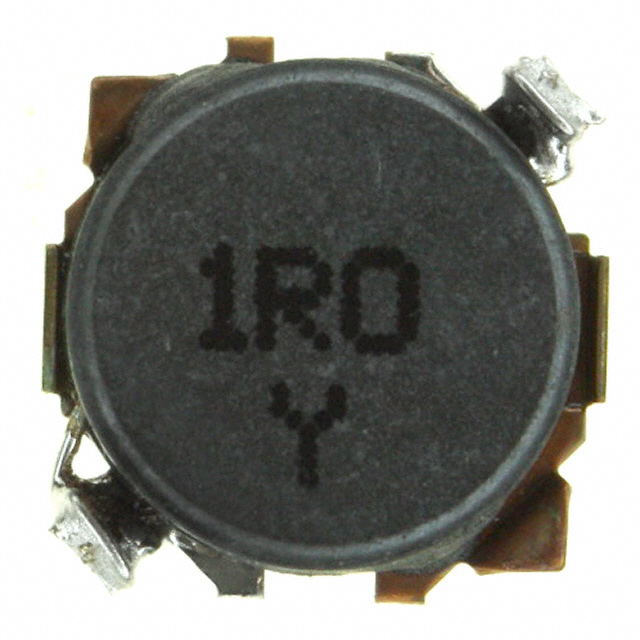

ELL-6GG1R0N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-6GG1R0N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-6GG1R0N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-6GG1R0N |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 1UH 2.5A 27 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.312 | $0.288 | $0.208 | $0.16 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-6GG1R0N | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 1UH 2.5A 27 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121453 pcs | Data sheet | ELL-6GG, PG Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | PCD2243CT |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1µH |
| Height - Seated (Max) | 0.063" (1.60mm) | Frequency - Self Resonant | - |
| Detailed Description | 1µH Shielded Wirewound Inductor 2.5A 27 mOhm Nonstandard | DC Resistance (DCR) | 27 mOhm |
| Current Rating | 2.5A | Current - Saturation | 2.5A |
