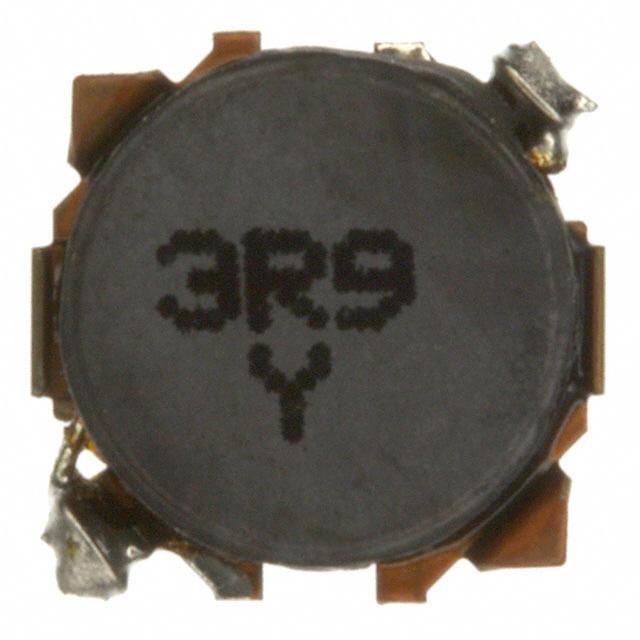

ELL-6GG3R9M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-6GG3R9M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-6GG3R9M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-6GG3R9M |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 3.9UH 1.7A 60 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.318 | $0.293 | $0.212 | $0.163 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-6GG3R9M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 3.9UH 1.7A 60 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138854 pcs | Data sheet | ELL-6GG, PG Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | PCD2247CT |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 3.9µH |
| Height - Seated (Max) | 0.063" (1.60mm) | Frequency - Self Resonant | - |
| Detailed Description | 3.9µH Shielded Wirewound Inductor 1.7A 60 mOhm Nonstandard | DC Resistance (DCR) | 60 mOhm |
| Current Rating | 1.7A | Current - Saturation | 1.65A |
