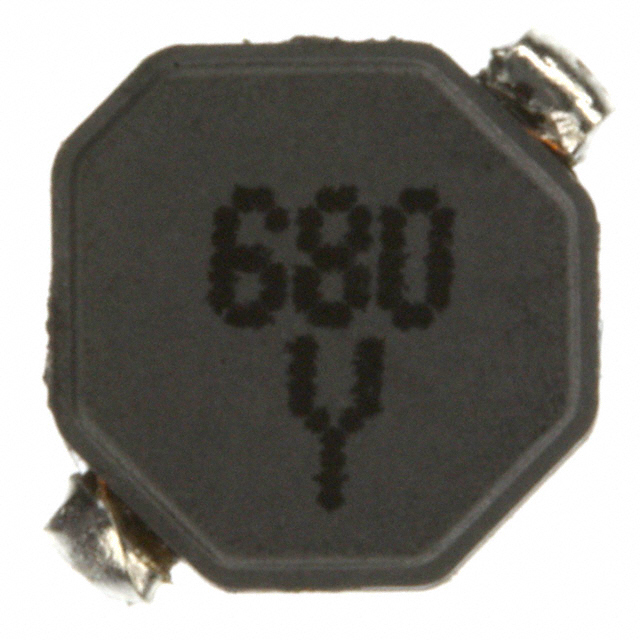

ELL-5PS680M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-5PS680M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-5PS680M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-5PS680M |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 68UH 480MA 750 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-5PS680M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 68UH 480MA 750 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5377 pcs | Data sheet | ELL-5PS Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | Shielding | Shielded |
| Series | S | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | PCD2240CT |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 68µH | Height - Seated (Max) | 0.079" (2.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 68µH Shielded Wirewound Inductor 480mA 750 mOhm Nonstandard |
| DC Resistance (DCR) | 750 mOhm | Current Rating | 480mA |
| Current - Saturation | 380mA |
