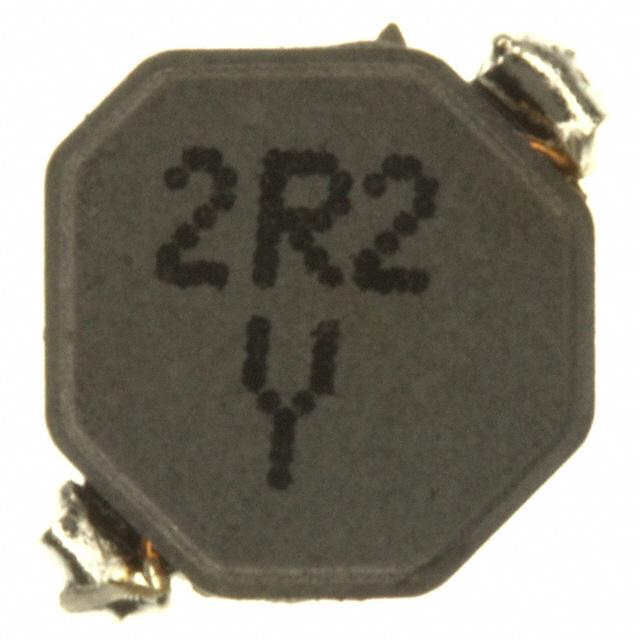

ELL-5PS2R2N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-5PS2R2N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-5PS2R2N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-5PS2R2N |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 2.2UH 2.1A 34 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-5PS2R2N | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 2.2UH 2.1A 34 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5270 pcs | Data sheet | ELL-5PS Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | Shielding | Shielded |
| Series | S | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | ELL5PS2R2N PCD2230TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 2.2µH | Height - Seated (Max) | 0.079" (2.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 2.2µH Shielded Wirewound Inductor 2.1A 34 mOhm Nonstandard |
| DC Resistance (DCR) | 34 mOhm | Current Rating | 2.1A |
| Current - Saturation | 2.1A |
