Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > MCP1630RD-SALED

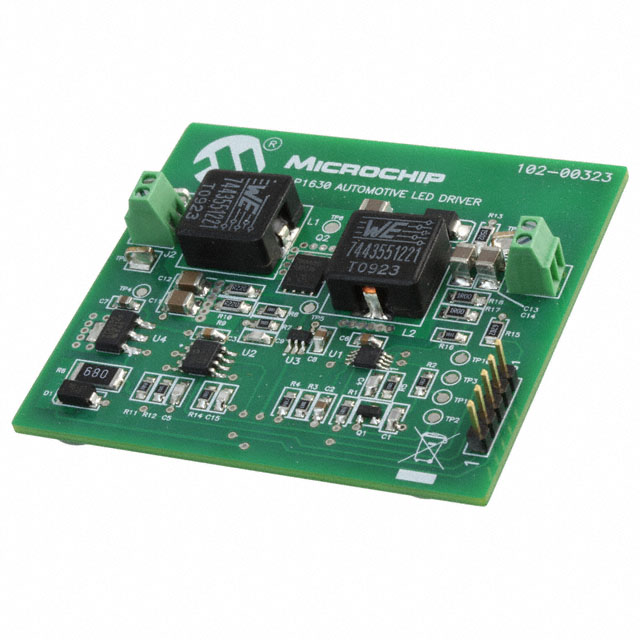

MCP1630RD-SALED

MCP1630RD-SALED

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP1630RD-SALED with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP1630RD-SALED
Manufacturer	Micrel / Microchip Technology
Description	DEV REF DESIGN LED DVR MCP1630
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1938 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$18.431

Product parameter
Data sheet

Product parameter

Part Number	MCP1630RD-SALED	Manufacturer	Micrel / Microchip Technology
Description	DEV REF DESIGN LED DVR MCP1630	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1938 pcs	Data sheet	MCP1630/V Portable Power Conversion Design Guide MCP1630 Design User Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	9 V ~ 16 V	Utilized IC / Part	MCP1630
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Other Names	MCP1630RDSALED
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Dimmable	Detailed Description	MCP1630 1, Non-Isolated Output LED Driver Evaluation Board
Current - Output / Channel	350mA
