Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MCP1630DM-DDBK4

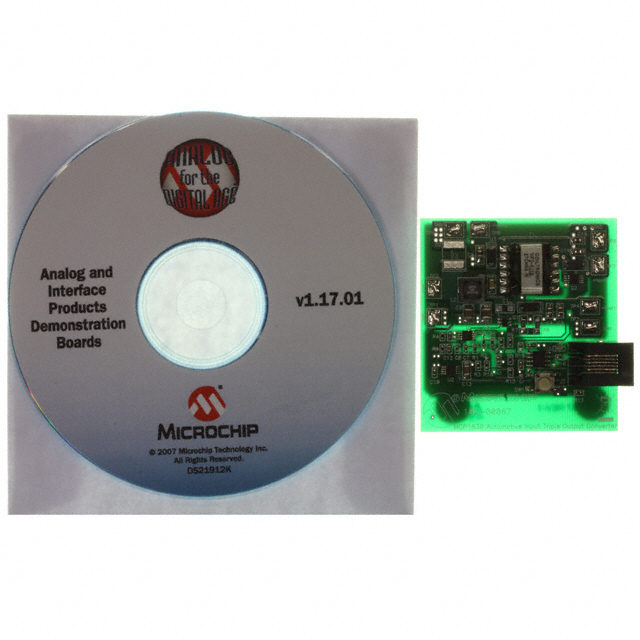

MCP1630DM-DDBK4

MCP1630DM-DDBK4

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP1630DM-DDBK4 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP1630DM-DDBK4
Manufacturer	Micrel / Microchip Technology
Description	BOARD CONV DEMO MCP1630 TRPL-OUT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4573 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MCP1630DM-DDBK4	Manufacturer	Micrel / Microchip Technology
Description	BOARD CONV DEMO MCP1630 TRPL-OUT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4573 pcs	Data sheet	MCP1630/V MCP1630V Ref Design Guide Portable Power Conversion Design Guide MCP1630 Auto Demo Board Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	1.2V, 3.3V, 4.7V
Voltage - Input	6.5 V ~ 40 V	Utilized IC / Part	MCP1630
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	3, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	DC/DC, Step Down
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	250kHz
Detailed Description	MCP1630 - DC/DC, Step Down 3, Non-Isolated Outputs Evaluation Board	Current - Output	1.2A, 600mA, 150mA
Board Type	Fully Populated
