Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > MCP1630RD-DDBK3

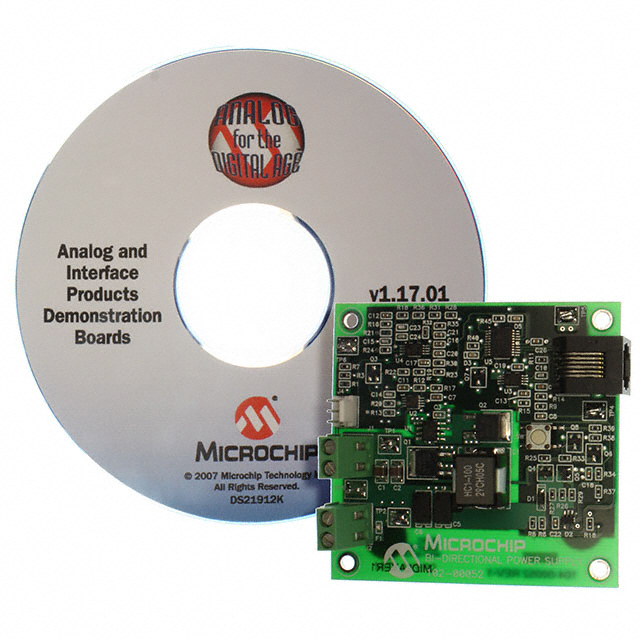

MCP1630RD-DDBK3

MCP1630RD-DDBK3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP1630RD-DDBK3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP1630RD-DDBK3
Manufacturer	Micrel / Microchip Technology
Description	REF DESIGN MCP1630V BI-DIR 4CELL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1378 pcs
Reference Price (In US Dollars)	2 pcs
Reference Price (In US Dollars)	$25.867

Product parameter
Data sheet

Product parameter

Part Number	MCP1630RD-DDBK3	Manufacturer	Micrel / Microchip Technology
Description	REF DESIGN MCP1630V BI-DIR 4CELL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1378 pcs	Data sheet	MCP1630/V MCP1630V Ref Design Guide Portable Power Conversion Design Guide
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP1630
Type	Power Management	Supplied Contents	Board(s)
Series	-	Secondary Attributes	MCU Generates Frequency, 94% Efficiency, 2 Status LEDs
Primary Attributes	4 Cells- Li-Ion, 6.5 ~ 7V Input	Other Names	MCP1630RDDDBK3
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Battery Charger	Embedded	Yes, MCU, 8-Bit
Detailed Description	MCP1630 Battery Charger Power Management Evaluation Board
