Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MCP1630RD-DDBK1

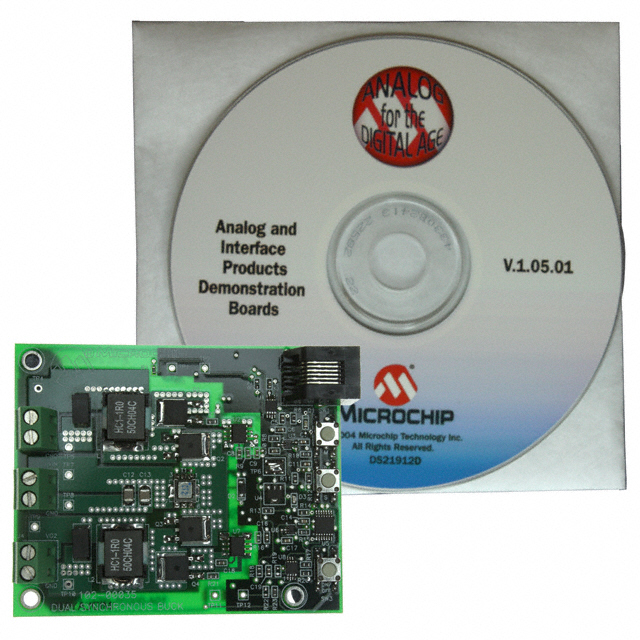

MCP1630RD-DDBK1

MCP1630RD-DDBK1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP1630RD-DDBK1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP1630RD-DDBK1
Manufacturer	Micrel / Microchip Technology
Description	BOARD DEMO FOR MCP1630
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 1387 pcs
Reference Price (In US Dollars)	2 pcs
Reference Price (In US Dollars)	$24.059

Product parameter
Data sheet

Product parameter

Part Number	MCP1630RD-DDBK1	Manufacturer	Micrel / Microchip Technology
Description	BOARD DEMO FOR MCP1630	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	1387 pcs	Data sheet	MCP1630/V Portable Power Conversion Design Guide MCP1630 Dual Buck Ref Design
Category	Development Boards, Kits, Programmers	Voltage - Output	1.22 V ~ 2.3 V, 2.42 V ~ 3.39 V
Voltage - Input	9 V ~ 13.5 V	Utilized IC / Part	MCP1630
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	2, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	DC/DC, Step Down
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Frequency - Switching	500kHz
Detailed Description	MCP1630 - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board	Current - Output	20A, 20A
Board Type	Fully Populated
