Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > MCP1630DM-LED2

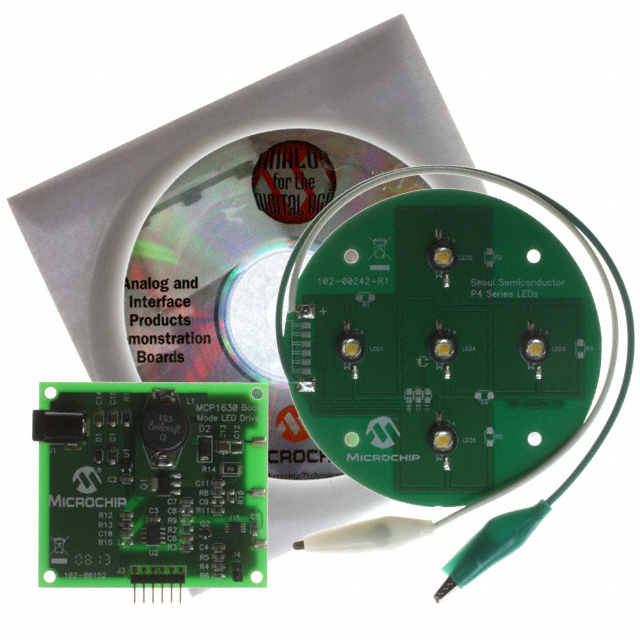

MCP1630DM-LED2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP1630DM-LED2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP1630DM-LED2
Manufacturer	Micrel / Microchip Technology
Description	BOARD DEM MCP1630 BOOST MODE LED
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2225 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$14.902

Product parameter
Data sheet

Product parameter

Part Number	MCP1630DM-LED2	Manufacturer	Micrel / Microchip Technology
Description	BOARD DEM MCP1630 BOOST MODE LED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2225 pcs	Data sheet	MCP1630V Ref Design Guide Portable Power Conversion Design Guide Analog Solutions Design Guide MCP1630 Boost Mode LED Driver Demo Board User Guid
Category	Development Boards, Kits, Programmers	Voltage - Output	40V
Voltage - Input	9 V ~ 16 V	Utilized IC / Part	MCP1630
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Other Names	MCP1630DMLED2
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Dimmable	Detailed Description	MCP1630 1, Non-Isolated Output LED Driver Evaluation Board
Current - Output / Channel	350mA or 700mA
