Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > MCP1630RD-NMC1

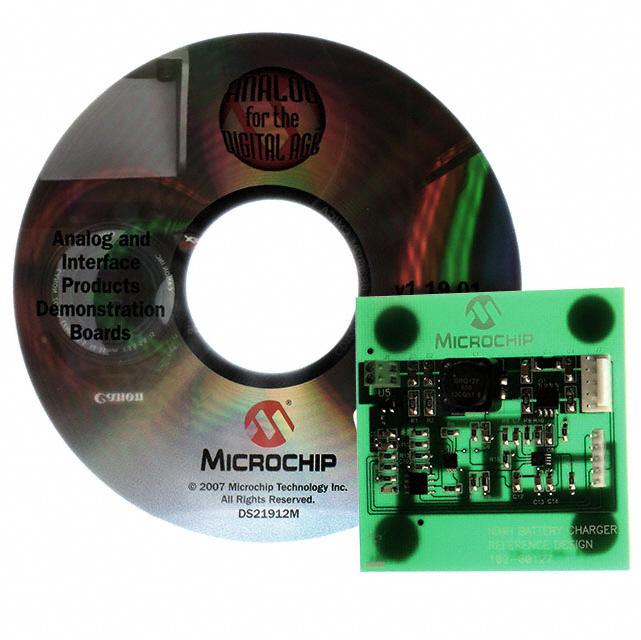

MCP1630RD-NMC1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCP1630RD-NMC1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MCP1630RD-NMC1
Manufacturer	Micrel / Microchip Technology
Description	REF DESIGN MCP1630 NIMH BATT CHG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2564 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$13.068

Product parameter
Data sheet

Product parameter

Part Number	MCP1630RD-NMC1	Manufacturer	Micrel / Microchip Technology
Description	REF DESIGN MCP1630 NIMH BATT CHG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2564 pcs	Data sheet	MCP1630/V Portable Power Conversion Design Guide MCP1630 Low-Cost NiMH Ref Design
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MCP1630
Type	Power Management	Supplied Contents	Board(s)
Series	-	Secondary Attributes	Preconditioning, Cell Temperature and Batt Pack Fault Monitoring
Primary Attributes	3 Cells- NiMH / NiCd, 1.35A Out, 6V ~ 15V Input	Other Names	MCP1630RDNMC1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Battery Charger	Embedded	No
Detailed Description	MCP1630 Battery Charger Power Management Evaluation Board
