1461750001

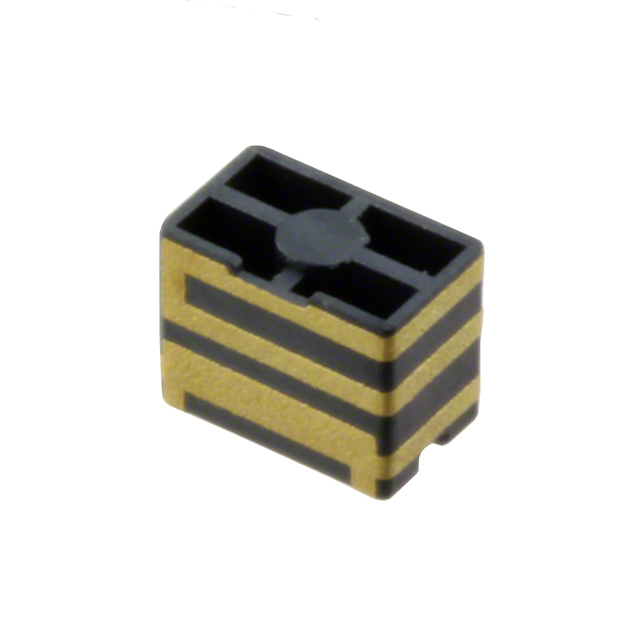

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1461750001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1461750001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1461750001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RF ANT 2.4GHZ/5.4GHZ CHIP SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1650 pcs | 3300 pcs | 4950 pcs | 11550 pcs | |
|---|---|---|---|---|---|
| $0.174 | $0.162 | $0.154 | $0.148 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1461750001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RF ANT 2.4GHZ/5.4GHZ CHIP SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160931 pcs | Data sheet | 2.4/5, 2.4GHz SMD MID Chip Antennas1461750001 Spec1461750001 Drawing |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -6dB | Packaging | Tape & Reel (TR) |
| Other Names | 146175-0001 WM13067TR |
Number of Bands | 2 |
| Mounting Type | Surface Mount | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.157" (4.00mm) | Gain | 4.2dB |
| Frequency Range | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) |
| Frequency (Center/Band) | 2.4GHz, 5.4GHz | Features | - |
| Detailed Description | 2.4GHz, 5.4GHz WLAN Chip RF Antenna 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz 4.2dB Solder Surface Mount | Applications | WLAN |
| Antenna Type | Chip |
