1461794011

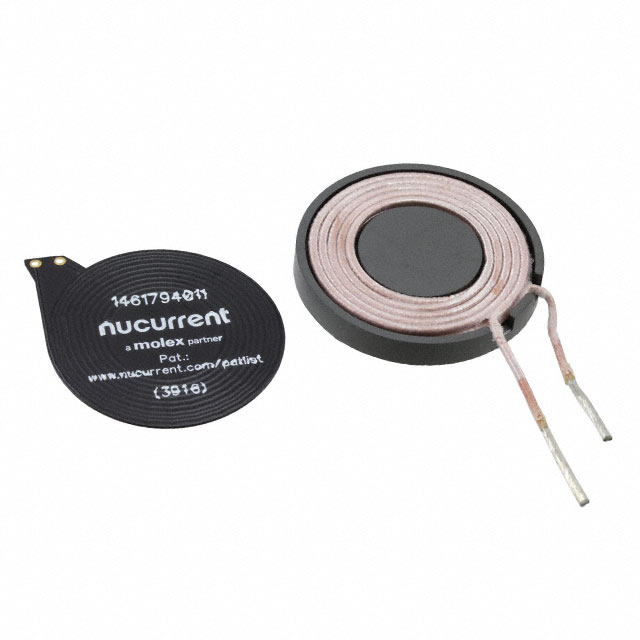

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1461794011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1461794011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1461794011 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RX TX 2 COIL 1 LAYER 9.6UH 5.6UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 250 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.344 | $2.972 | $2.229 | $2.154 | $1.976 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1461794011 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RX TX 2 COIL 1 LAYER 9.6UH 5.6UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17181 pcs | Data sheet | 1461794011 DrawingPowerLife™ Power Coils Brochure1461794011 Prod Spec1461794011 Appl Spec |
| Category | Inductors, Coils, Chokes | Type | 2 Coil, 1 Layer |
| Tolerance | ±2% | Size / Dimension | 1.063" Dia x 0.146" H (27.00mm x 3.70mm) |
| Series | NuCurrent, PowerLife, 146179 | Q @ Freq | 18 @ 200kHz, 160 @ 200kHz |
| Other Names | 146179-4011 WM15006 |
Operating Temperature | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 9.6µH, 5.6µH | Function | Receiver, Transmitter |
| Frequency - Self Resonant | - | Detailed Description | 2 Coil, 1 Layer 9.6µH, 5.6µH Wireless Charging Coil Receiver, Transmitter 550 mOhm, 38 mOhm |
| DC Resistance (DCR) | 550 mOhm, 38 mOhm | Current Rating | - |
| Current - Saturation | - |
