1461530300

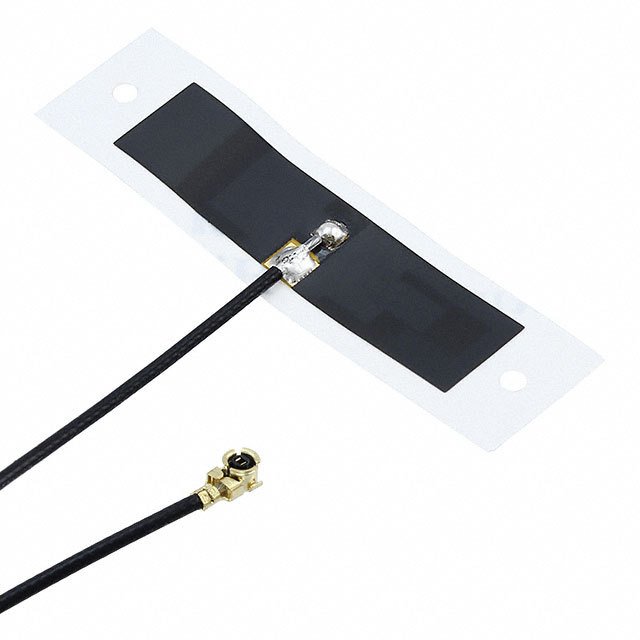

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1461530300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1461530300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1461530300 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RF ANT 2.4/5GHZ FLAT PATCH 300MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.034 | $0.924 | $0.832 | $0.758 | $0.684 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.614 | $0.518 | $0.492 | $0.473 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1461530300 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RF ANT 2.4/5GHZ FLAT PATCH 300MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75102 pcs | Data sheet | 146153 Series Product Spec146153 Series Drawing146153 Wi-Fi Dual-Band Antennas |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Cable (300mm) - U.FL | Series | 146153 |
| Return Loss | -10dB | Power - Max | 2W |
| Packaging | Bulk | Other Names | 146153-0300 WM11935 |
| Number of Bands | 2 | Mounting Type | Adhesive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.004" (0.10mm) | Gain | 2.2dBi, 3.3dBi |
| Frequency Range | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) |
| Frequency (Center/Band) | 2.4GHz, 5GHz | Features | - |
| Detailed Description | 2.4GHz, 5GHz WLAN, Zigbee™ Flat Patch RF Antenna 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz 2.2dBi, 3.3dBi Cable (300mm) - U.FL Adhesive | Applications | WLAN, Zigbee™ |
| Antenna Type | Flat Patch |
