1461798001

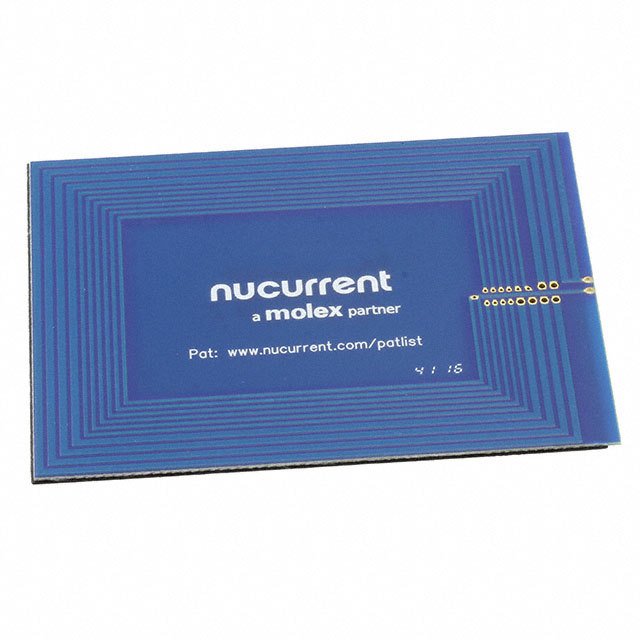

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1461798001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1461798001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1461798001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RX 1 COIL 1 LAYER 2.9UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.021 | $3.718 | $3.015 | $2.814 | $2.673 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1461798001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RX 1 COIL 1 LAYER 2.9UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13432 pcs | Data sheet | PowerLife™ Power Coils Brochure1461798001 Appl Spec1461798001 Prod Spec1461798001 Drawing |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±2% | Size / Dimension | 2.236" L x 2.864" W x 0.037" H (56.80mm x 72.75mm x 0.95mm) |
| Series | NuCurrent, PowerLife, 146179 | Q @ Freq | 160 @ 6.78MHz |
| Other Names | 146179-8001 WM15003 |
Operating Temperature | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 2.9µH | Function | Receiver |
| Frequency - Self Resonant | - | Detailed Description | 1 Coil, 1 Layer 2.9µH Wireless Charging Coil Receiver 120 mOhm |
| DC Resistance (DCR) | 120 mOhm | Current Rating | - |
| Current - Saturation | - |
