Home > Products > Transformers > Switching Converter, SMPS Transformers > ECO2020SEO-D04H015

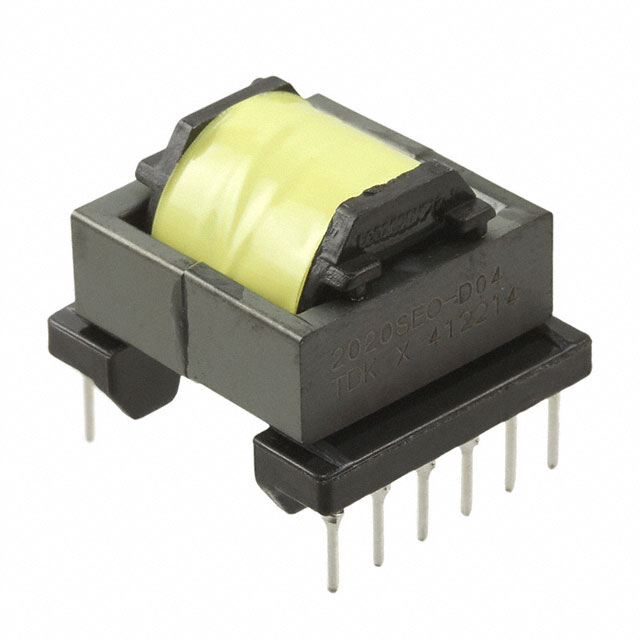

ECO2020SEO-D04H015

ECO2020SEO-D04H015

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECO2020SEO-D04H015 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ECO2020SEO-D04H015
Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 18640 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$1.876

Product parameter
Data sheet

Product parameter

Part Number	ECO2020SEO-D04H015	Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18640 pcs	Data sheet	ECO Series
Category	Transformers	Voltage - Primary	96 ~ 144V
Voltage - Isolation	3000Vrms	Voltage - Auxiliary	12V @ 1.5A
Type	For AC/DC Converters	Size / Dimension	0.925" L x 1.063" W (23.50mm x 27.00mm)
Series	ECO	Packaging	Bulk
Other Names	445-16066	Operating Temperature	-30°C ~ 120°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	867µH @ 10kHz
Height - Seated (Max)	0.787" (20.00mm)	Frequency	67kHz
Footprint	0.925" L x 1.063" W (23.50mm x 27.00mm)	Chipset Manufacturer	-
Applications	Flyback Converters
