Home > Products > Transformers > Switching Converter, SMPS Transformers > ECO2020SEO-D02H015

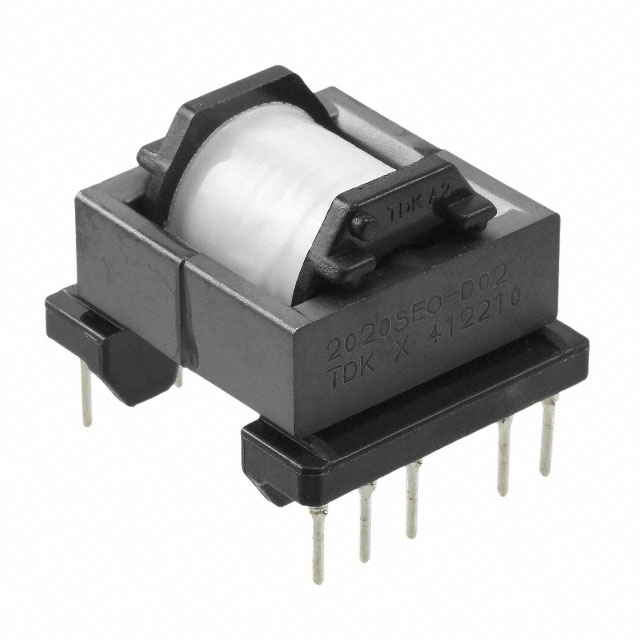

ECO2020SEO-D02H015

ECO2020SEO-D02H015

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECO2020SEO-D02H015 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ECO2020SEO-D02H015
Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 16426 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$1.861

Product parameter
Data sheet

Product parameter

Part Number	ECO2020SEO-D02H015	Manufacturer	TDK Corporation
Description	INDUCTOR/XFRMR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16426 pcs	Data sheet	ECO Series
Category	Transformers	Voltage - Primary	75 ~ 326V
Voltage - Isolation	1500Vrms	Voltage - Auxiliary	12.7V @ 600mA
Type	For AC/DC Converters	Size / Dimension	0.925" L x 1.063" W (23.50mm x 27.00mm)
Series	ECO	Packaging	Bulk
Other Names	445-16064	Operating Temperature	-30°C ~ 120°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	534µH @ 10kHz
Height - Seated (Max)	0.787" (20.00mm)	Frequency	-
Footprint	0.925" L x 1.063" W (23.50mm x 27.00mm)	Chipset Manufacturer	-
Applications	Flyback Converters
