W3010

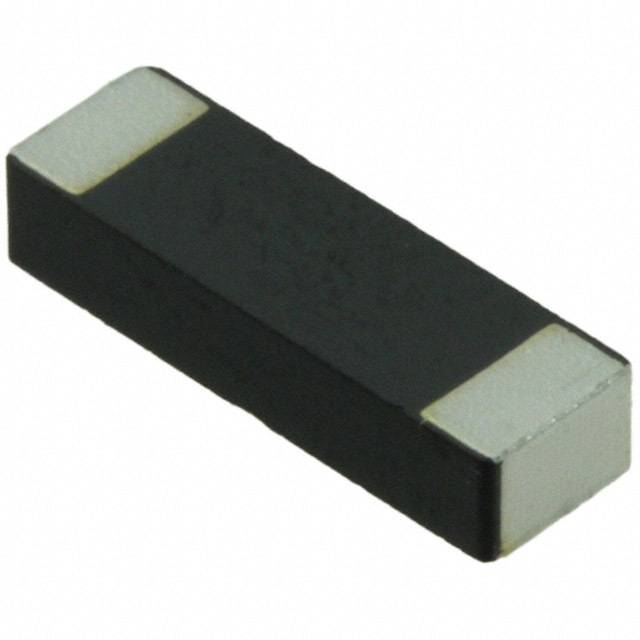

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W3010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W3010 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 1.575GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.291 | $0.271 | $0.261 | $0.251 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | W3010 | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | RF ANT 1.575GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80913 pcs | Data sheet | Antennas SourceBook® Ver 13W3010 |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -18dB | Packaging | Tape & Reel (TR) |
| Other Names | 553-1670-2 W3010-ND |
Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.079" (2.00mm) |
| Gain | 2.8dBi | Frequency Range | - |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | Frequency (Center/Band) | 1.575GHz |
| Features | - | Detailed Description | 1.575GHz GPS Chip RF Antenna 2.8dBi Solder Surface Mount |
| Applications | GPS | Antenna Type | Chip |
