W3006

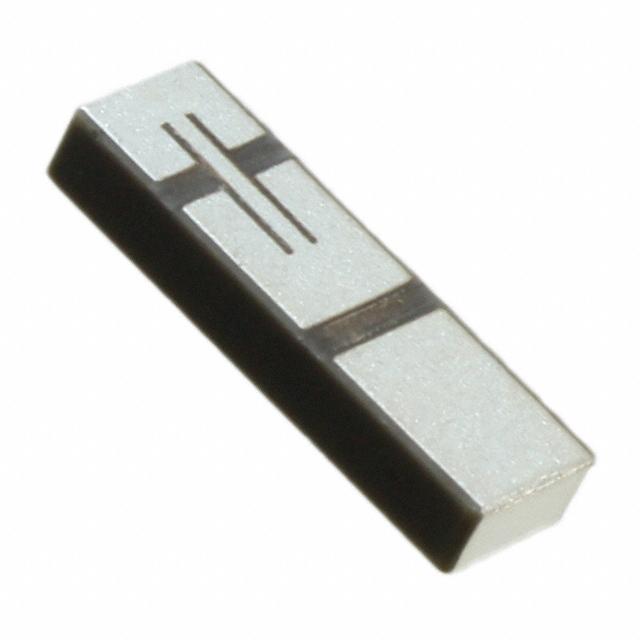

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3006 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W3006 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W3006 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.717 | $0.649 | $0.58 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.522 | $0.464 | $0.406 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | W3006 | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | RF ANT 2.4GHZ/5.5GHZ CHIP SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78139 pcs | Data sheet | Antennas SourceBook® Ver 13W3006 |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -8dB, -10dB | Packaging | Cut Tape (CT) |
| Other Names | 553-1673-1 | Number of Bands | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.059" (1.50mm) |
| Gain | 3.2dBi, 4.2dBi | Frequency Range | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | Frequency (Center/Band) | 2.4GHz, 5.5GHz |
| Features | - | Detailed Description | 2.4GHz, 5.5GHz WLAN, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz 3.2dBi, 4.2dBi Solder Surface Mount |
| Applications | WLAN, Zigbee™ | Antenna Type | Chip |
