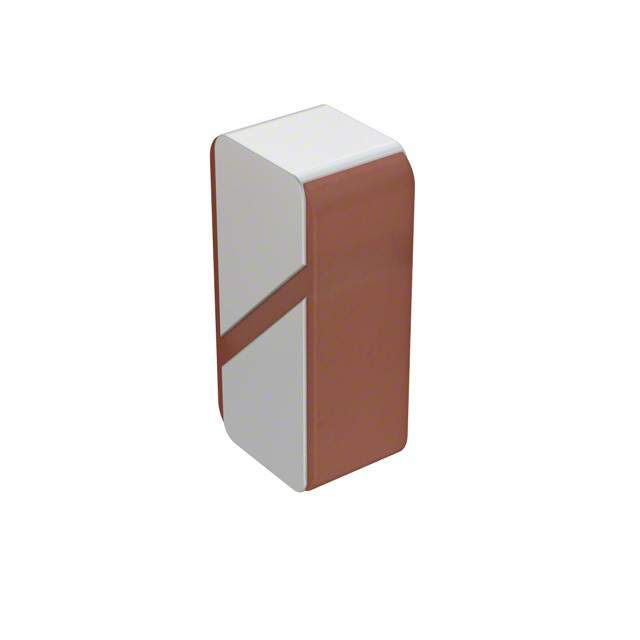

W3011
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W3011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W3011 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 1.575GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.605 | $0.547 | $0.488 | $0.439 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.39 | $0.342 | $0.283 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | W3011 | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | RF ANT 1.575GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76617 pcs | Data sheet | Antennas SourceBook® Ver 13W3011(A) |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -12dB | Packaging | Cut Tape (CT) |
| Other Names | 553-2582-1 | Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.043" (1.10mm) |
| Gain | 3.4dBi | Frequency Range | - |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | Frequency (Center/Band) | 1.575GHz |
| Features | - | Detailed Description | 1.575GHz GPS Chip RF Antenna 3.4dBi Solder Surface Mount |
| Applications | GPS | Antenna Type | Chip |
