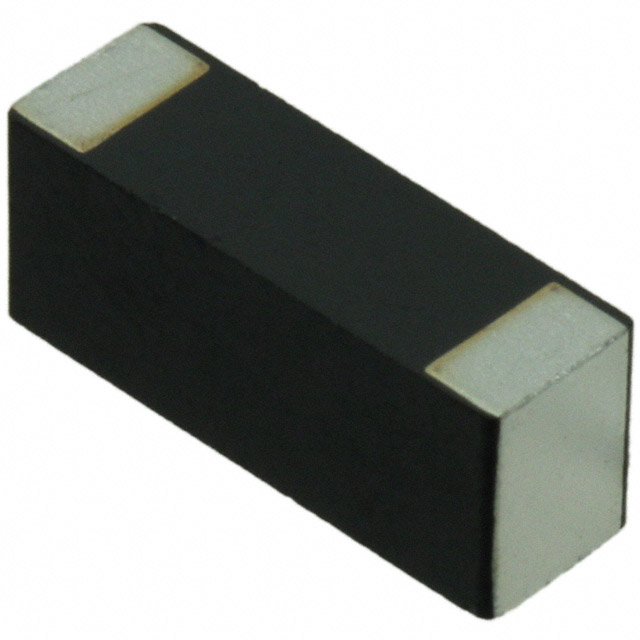

W3012
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W3012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W3012 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 900MHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | 12500 pcs |
|---|---|---|---|---|---|
| $0.382 | $0.316 | $0.294 | $0.283 | $0.273 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | W3012 | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | RF ANT 900MHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86499 pcs | Data sheet | Antennas SourceBook® Ver 13W3012 |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -6dB | Packaging | Tape & Reel (TR) |
| Other Names | 553-1676-2 W3012-ND |
Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.157" (4.00mm) |
| Gain | 2dBi | Frequency Range | 902MHz ~ 928MHz |
| Frequency Group | UHF (300 MHz ~ 1 GHz) | Frequency (Center/Band) | 900MHz |
| Features | - | Detailed Description | 900MHz Chip RF Antenna 902MHz ~ 928MHz 2dBi Solder Surface Mount |
| Applications | - | Antenna Type | Chip |
