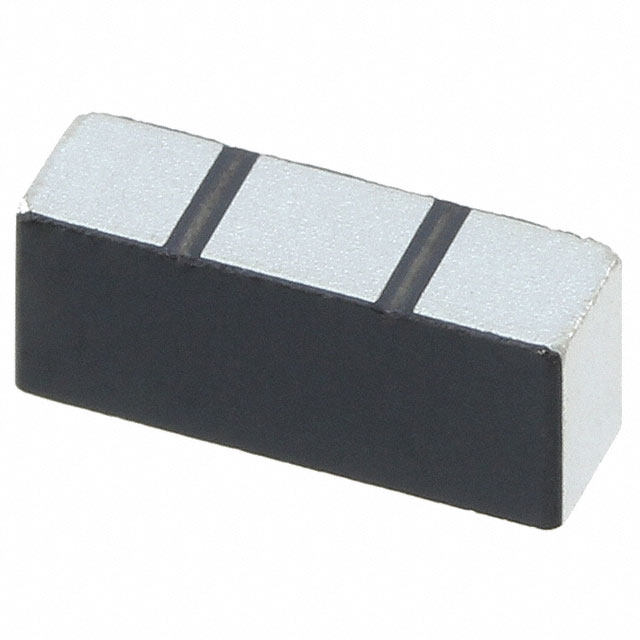

W3001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W3001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W3001 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 2.4GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.814 | $0.734 | $0.655 | $0.59 | $0.524 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | W3001 | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | RF ANT 2.4GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67208 pcs | Data sheet | Antennas SourceBook® Ver 13W3001 |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -6dB | Packaging | Cut Tape (CT) |
| Other Names | 553-2578-1 | Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.157" (4.00mm) |
| Gain | 1.5dBi | Frequency Range | 2.4GHz ~ 2.483GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz) | Frequency (Center/Band) | 2.4GHz |
| Features | - | Detailed Description | 2.4GHz Bluetooth, WLAN Chip RF Antenna 2.4GHz ~ 2.483GHz 1.5dBi Solder Surface Mount |
| Applications | Bluetooth, WLAN | Antenna Type | Chip |
