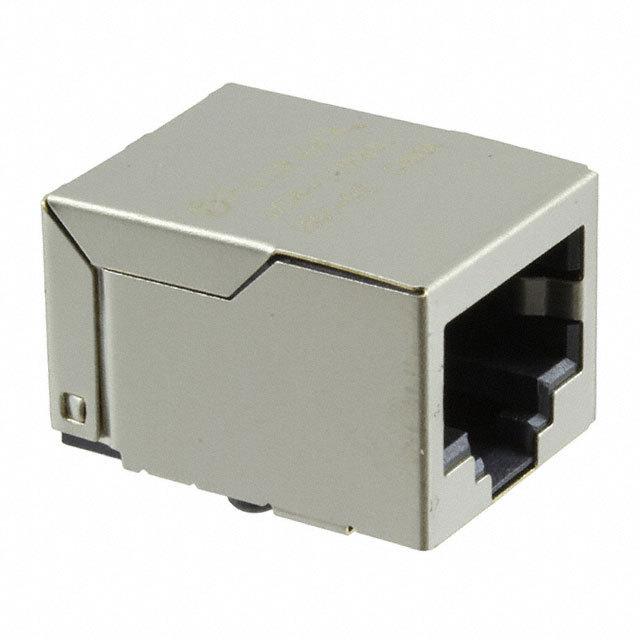

JXD6-1100NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXD6-1100NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXD6-1100NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXD6-1100NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN,SMD RJ45, 100D,1:1, NO EMI, |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.644 | $1.577 | $1.445 | $1.38 | $1.314 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.15 | $1.117 | $0.953 | $0.887 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXD6-1100NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN,SMD RJ45, 100D,1:1, NO EMI, | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34868 pcs | Data sheet | JXD6-1100NL |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Down | Shielding | Shielded |
| Shield Material | Brass | Series | PULSEJACK™ JXD6 |
| Packaging | Tray | Other Names | 553-3746 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| LED Color | Does Not Contain LED | Housing Material | Thermoplastic |
| Height Above Board | 0.531" (13.49mm) | Features | Board Guide |
| Detailed Description | 1 Port RJ45 Magjack Connector Surface Mount | Contact Material | Copper Alloy |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Gold |
| Connector Type | RJ45 | Applications | - |
