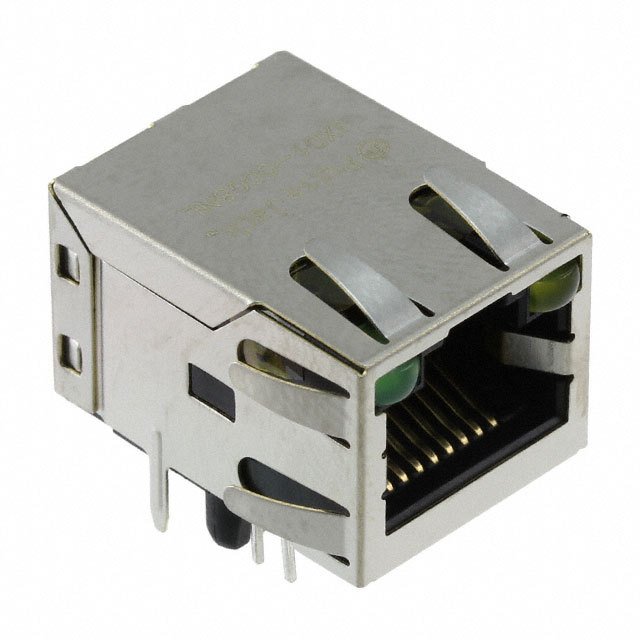

JXD1-0014NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXD1-0014NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXD1-0014NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXD1-0014NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN,RJ45,1X1,100D,1:1,GY,EMI,TY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.991 | $1.911 | $1.752 | $1.673 | $1.593 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.394 | $1.354 | $1.155 | $1.075 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXD1-0014NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN,RJ45,1X1,100D,1:1,GY,EMI,TY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35872 pcs | Data sheet | JXD1-0014NL |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | PULSEJACK™ JXD1 |
| Packaging | Tray | Other Names | 553-3740 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| LED Color | Yellow - Green | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Height Above Board | 0.528" (13.40mm) | Features | Board Lock |
| Detailed Description | 1 Port RJ45 Magjack Connector Through Hole | Contact Material | Copper Alloy |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | RJ45 | Applications | - |
