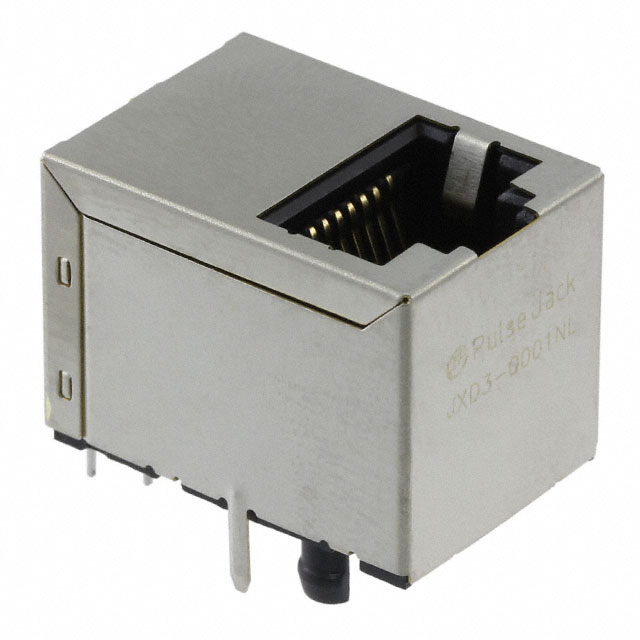

JXD3-0001NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXD3-0001NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXD3-0001NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXD3-0001NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 1000BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.537 | $2.433 | $2.221 | $2.116 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.01 | $1.798 | $1.692 | $1.481 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXD3-0001NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 1000BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21948 pcs | Data sheet | JXD3-0001NL |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | User Selectable | Shielding | Shielded |
| Shield Material | Brass | Series | PULSEJACK™ JXD3 |
| Packaging | Tray | Other Names | 553-3271 JXD3-0001NL-ND |
| Orientation | Vertical | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Does Not Contain LED |
| Housing Material | Polybutylene Terephthalate (PBT) | Height Above Board | 0.664" (16.87mm) |
| Features | Board Lock | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100/1000 Base-T, AutoMDIX |
