JXD3-0003NL

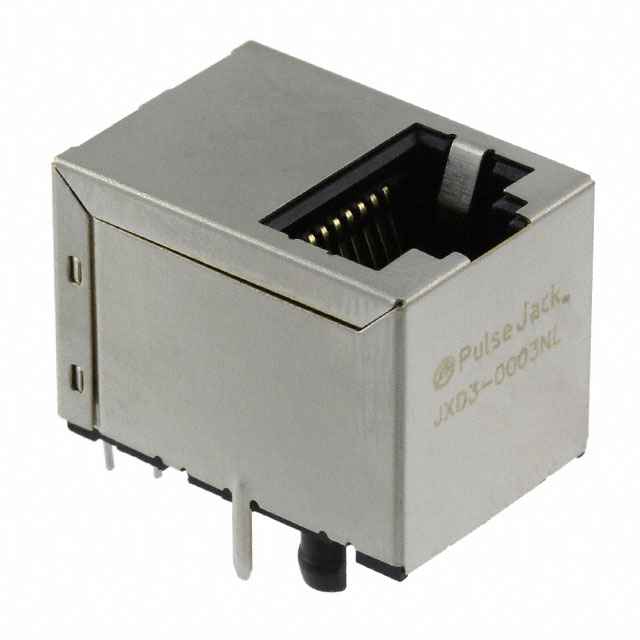

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXD3-0003NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXD3-0003NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXD3-0003NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 100BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.195 | $2.105 | $1.93 | $1.842 | $1.754 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.535 | $1.491 | $1.272 | $1.184 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXD3-0003NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29424 pcs | Data sheet | JXD3-0003NL |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | User Selectable | Shielding | Shielded |
| Shield Material | Brass | Series | PULSEJACK™ JXD3 |
| Packaging | Tray | Other Names | 553-3273 JXD3-0003NL-ND |
| Orientation | Vertical | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Does Not Contain LED |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Height Above Board | 0.664" (16.87mm) |
| Features | Board Lock | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-TX, AutoMDIX |
