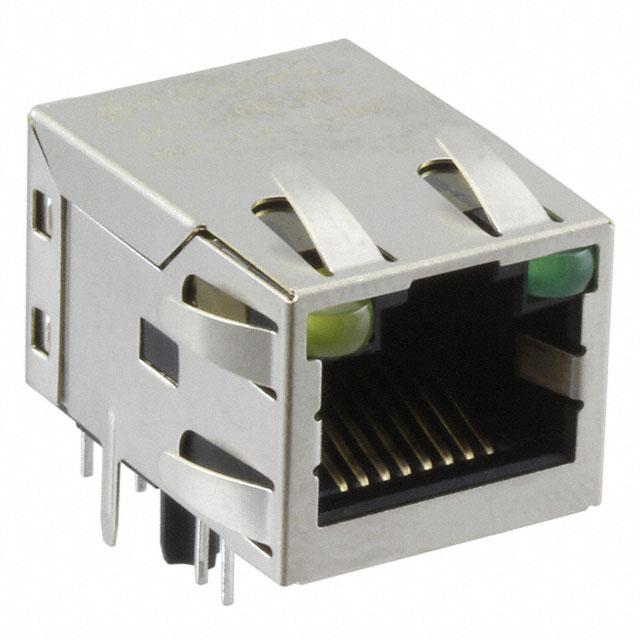

JXD1-0015NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXD1-0015NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXD1-0015NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXD1-0015NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN,RJ45, 1GD,1:1, YG,EMI,TY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.716 | $2.605 | $2.378 | $2.265 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.152 | $1.925 | $1.812 | $1.585 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXD1-0015NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN,RJ45, 1GD,1:1, YG,EMI,TY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21871 pcs | Data sheet | JXD1-0015NL DatasheetJXD Series, 1000Base-T Ethernet Product InfoJXD1-0015NL Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | PULSEJACK™ JXD1 |
| Packaging | Tray | Other Names | 553-3741 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Yellow - Green |
| Housing Material | Thermoplastic | Height Above Board | 0.543" (13.80mm) |
| Features | Board Lock | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | - |
