EHD-RD3326

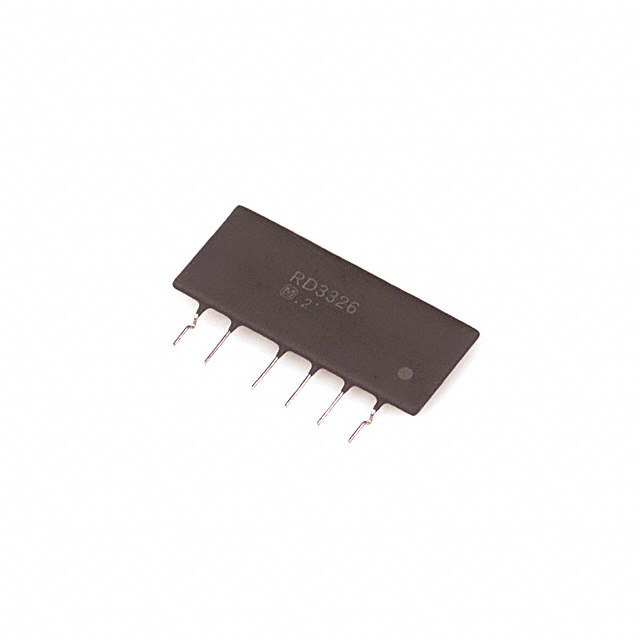

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHD-RD3326 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHD-RD3326 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHD-RD3326 |
|---|---|
| Manufacturer | Panasonic |
| Description | DC DC CONVERTER 12V 3W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EHD-RD3326 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DC DC CONVERTER 12V 3W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4459 pcs | Data sheet | EHD-RD Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 12V |
| Voltage - Input (Min) | 113V | Voltage - Input (Max) | 170V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.57" L x 0.28" W x 0.87" H (40.0mm x 7.0mm x 22.0mm) |
| Series | EHD-RD | Power (Watts) | 3W |
| Packaging | Tray | Package / Case | 12-SIP Module, 6 Leads |
| Other Names | EHDRD3326 P11454 |
Operating Temperature | -20°C ~ 75°C |
| Number of Outputs | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Efficiency | 78% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 12V 300mA 113V - 170V Input | Current - Output (Max) | 300mA |
| Applications | ITE (Commercial) |
