EHD-RD3323

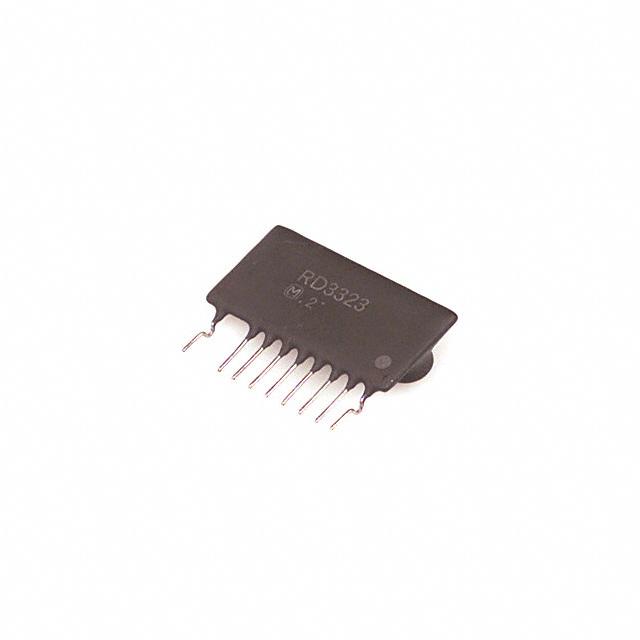

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHD-RD3323 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHD-RD3323 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHD-RD3323 |
|---|---|
| Manufacturer | Panasonic |
| Description | DC DC CONVERTER 12V 1W |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EHD-RD3323 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DC DC CONVERTER 12V 1W | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5116 pcs | Data sheet | EHD-RD Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 12V |
| Voltage - Input (Min) | 90V | Voltage - Input (Max) | 170V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.20" L x 0.39" W x 0.74" H (30.5mm x 10.0mm x 18.9mm) |
| Series | EHD-RD | Power (Watts) | 1W |
| Packaging | Tray | Package / Case | 10-SIP Module, 9 Leads |
| Other Names | EHDRD3323 P11456 |
Operating Temperature | -25°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | - | Efficiency | 70% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 12V 100mA 90V - 170V Input | Current - Output (Max) | 100mA |
| Applications | ITE (Commercial) |
