EHD-RD3363

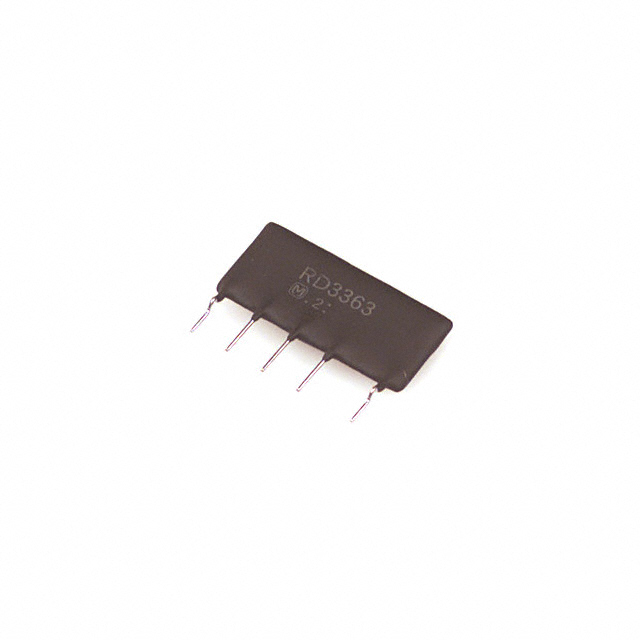

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHD-RD3363 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHD-RD3363 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHD-RD3363 |
|---|---|
| Manufacturer | Panasonic |
| Description | DC DC CONVERTER -24V 4W |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $1.327 | $1.309 | $1.29 | $1.252 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $1.214 | $1.176 | $1.138 | $1.062 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EHD-RD3363 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DC DC CONVERTER -24V 4W | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 30033 pcs | Data sheet | EHD-RD Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | -24V |
| Voltage - Input (Min) | -113V | Voltage - Input (Max) | -200V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm) |
| Series | EHD-RD | Power (Watts) | 4W |
| Packaging | Tray | Package / Case | 10-SIP Module, 5 Leads |
| Other Names | EHDRD3363 P11452 |
Operating Temperature | -20°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | - | Efficiency | 84% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output -24V 180mA -113V - -200V Input | Current - Output (Max) | 180mA |
| Applications | ITE (Commercial) |
