EHD-RD3320

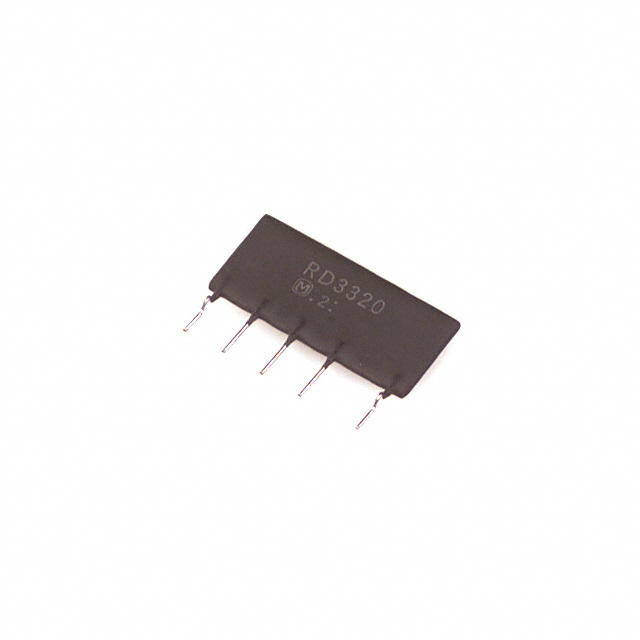

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHD-RD3320 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHD-RD3320 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHD-RD3320 |
|---|---|
| Manufacturer | Panasonic |
| Description | DC DC CONVERTER 12V 2W |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $1.524 | $1.502 | $1.48 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $1.437 | $1.393 | $1.35 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EHD-RD3320 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DC DC CONVERTER 12V 2W | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 25314 pcs | Data sheet | EHD-RD Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 12V |
| Voltage - Input (Min) | -113V | Voltage - Input (Max) | -170V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.11" L x 0.24" W x 0.70" H (28.2mm x 6.0mm x 17.9mm) |
| Series | EHD-RD | Power (Watts) | 2W |
| Packaging | Tray | Package / Case | 10-SIP Module, 5 Leads |
| Other Names | EHDRD3320 P11453 |
Operating Temperature | -25°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | - | Efficiency | 75% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 12V 200mA -113V - -170V Input | Current - Output (Max) | 200mA |
| Applications | ITE (Commercial) |
