EHD-RD3306

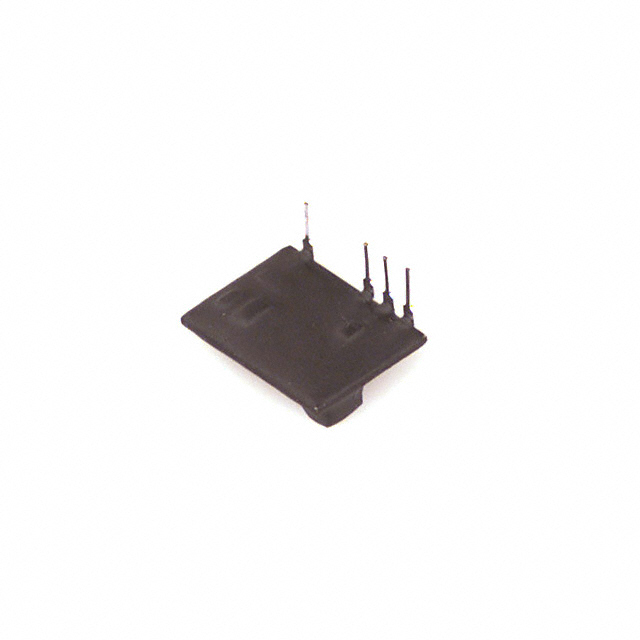

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHD-RD3306 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHD-RD3306 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHD-RD3306 |
|---|---|
| Manufacturer | Panasonic |
| Description | DC DC CONVERTER 5.1V 1W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EHD-RD3306 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DC DC CONVERTER 5.1V 1W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5705 pcs | Data sheet | EHD-RD Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 5.1V |
| Voltage - Input (Min) | -113V | Voltage - Input (Max) | -170V |
| Type | Non-Isolated PoL Module | Size / Dimension | 0.75" L x 0.59" W x 0.28" H (19.1mm x 15.0mm x 7.0mm) |
| Series | EHD-RD | Power (Watts) | 1W |
| Packaging | Tray | Package / Case | 6-SIP Module, 4 Leads |
| Other Names | EHDRD3306 P11455 |
Operating Temperature | -25°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Efficiency | 46% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 5.1V 30mA -113V - -170V Input | Current - Output (Max) | 30mA |
| Applications | ITE (Commercial) |
