Home > Products > Switches > Snap Action, Limit Switches > D2SW-P01L2D

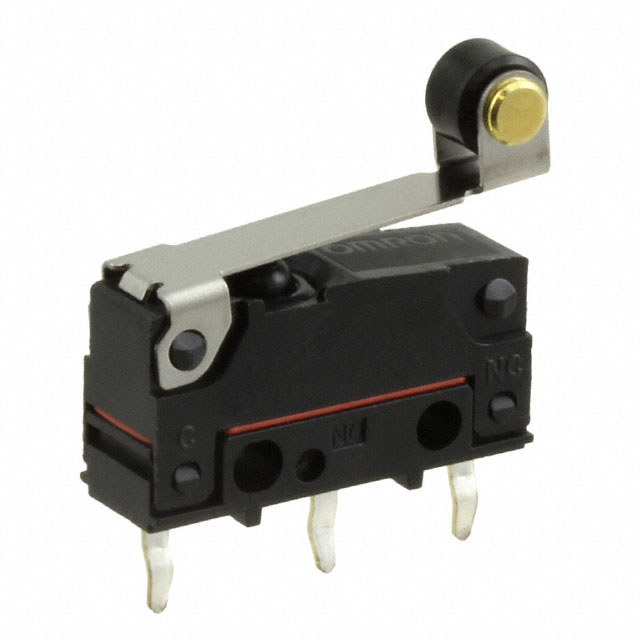

D2SW-P01L2D

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-P01L2D with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2SW-P01L2D
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 54475 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$0.72

Product parameter
Data sheet

Product parameter

Part Number	D2SW-P01L2D	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54475 pcs	Data sheet	D2SW-P Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-Mom	Series	D2SW-P
Release Force	5.099gf	Pretravel	-
Packaging	Bulk	Overtravel	0.030" (0.76mm)
Other Names	D2SW-P01L2D BY OMZ D2SWP01L2D D2SWP01L2D-ND D2SWP01L2DBYOMZ Z4681	Operating Temperature	-20°C ~ 70°C
Operating Position	0.571" (14.5mm)	Operating Force	61gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	19 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	200,000 Cycles
Differential Travel	0.031" (0.8mm)	Current Rating	100mA (AC/DC)
Circuit	SPDT	Actuator Type	Lever, Roller
