Home > Products > Switches > Snap Action, Limit Switches > D2SW-P01M

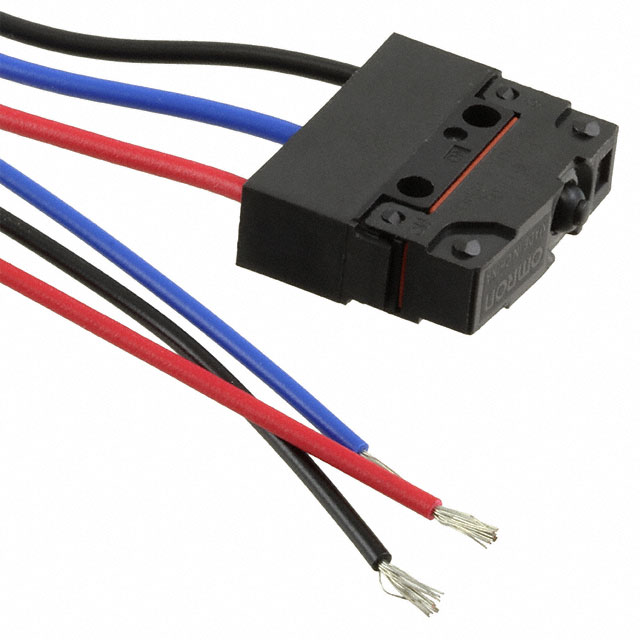

D2SW-P01M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-P01M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2SW-P01M
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 15399 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.607	$2.799	$2.652	$2.504
	$2.283	$2.136	$2.062	$1.989

Product parameter
Data sheet

Product parameter

Part Number	D2SW-P01M	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15399 pcs	Data sheet	D2SW-P Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Wire Leads
Switch Function	On-Mom	Series	D2SW-P
Release Force	20gf	Pretravel	0.024" (0.6mm)
Packaging	Bulk	Overtravel	0.015" (0.4mm)
Other Names	D2SW-P01M BY OMZ D2SW-P01M-ND D2SWP01M D2SWP01MBYOMZ Z4460	Operating Temperature	-20°C ~ 70°C
Operating Position	0.330" (8.4mm)	Operating Force	183gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	19 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	200,000 Cycles
Differential Travel	0.006" (0.15mm)	Current Rating	100mA (AC/DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
