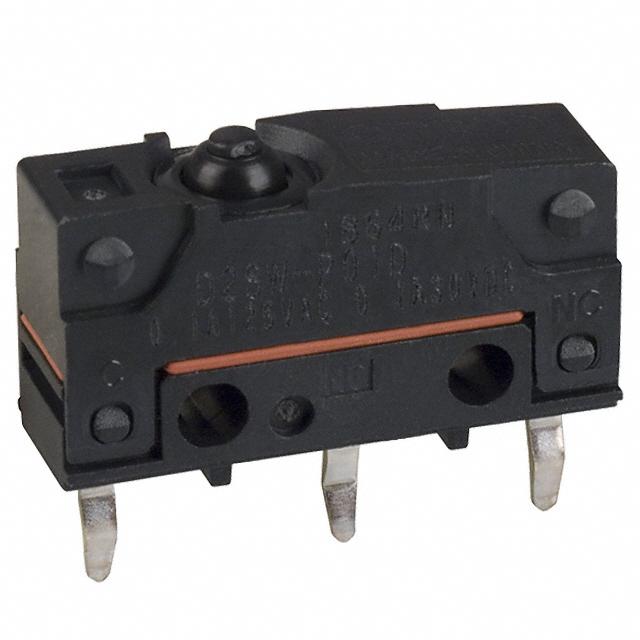

D2SW-P01D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-P01D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2SW-P01D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2SW-P01D |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.712 | $0.672 | $0.645 | $0.619 | $0.592 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.471 | $0.43 | $0.417 | $0.377 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2SW-P01D | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACT SPDT 100MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87750 pcs | Data sheet | D2SW-P Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | D2SW-P |
| Release Force | 20gf | Pretravel | 0.024" (0.6mm) |
| Packaging | Bulk | Overtravel | 0.015" (0.4mm) |
| Other Names | D2SW-P01D BY OMZ D2SWP01D D2SWP01DBYOMZ SW804 Z2122 Z2122-ND |
Operating Temperature | -20°C ~ 70°C |
| Operating Position | 0.330" (8.4mm) | Operating Force | 183gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Electrical Life | 200,000 Cycles |
| Differential Travel | 0.006" (0.15mm) | Current Rating | 100mA (AC/DC) |
| Circuit | SPDT | Actuator Type | Round (Pin Plunger) |
