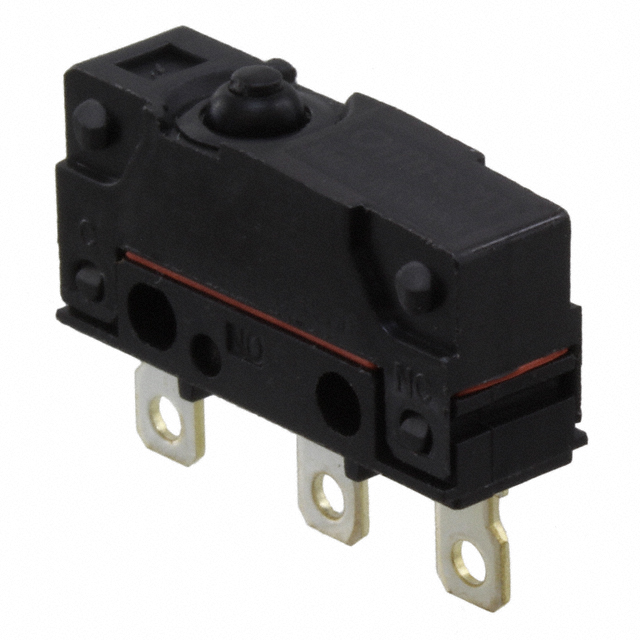

D2SW-P01H
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-P01H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2SW-P01H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2SW-P01H |
|---|---|
| Manufacturer | Omron |
| Description | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.778 | $0.718 | $0.673 | $0.658 | $0.524 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.494 | $0.464 | $0.434 | $0.404 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2SW-P01H | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SNAP ACT SPDT 100MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73661 pcs | Data sheet | D2SW-P Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | D2SW-P |
| Release Force | 20gf | Pretravel | 0.024" (0.6mm) |
| Packaging | Bulk | Overtravel | 0.015" (0.4mm) |
| Other Names | D2SW-P01H BY OMZ D2SW-P01H-ND D2SWP01H D2SWP01HBYOMZ Z11581 |
Operating Temperature | -20°C ~ 70°C |
| Operating Position | 0.330" (8.4mm) | Operating Force | 183gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000,000 Cycles | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | - |
| Electrical Life | 200,000 Cycles | Differential Travel | 0.006" (0.15mm) |
| Current Rating | 100mA (AC/DC) | Circuit | SPDT |
| Actuator Type | Round (Pin Plunger) |
