Home > Products > Switches > Snap Action, Limit Switches > D2SW-P01L1T

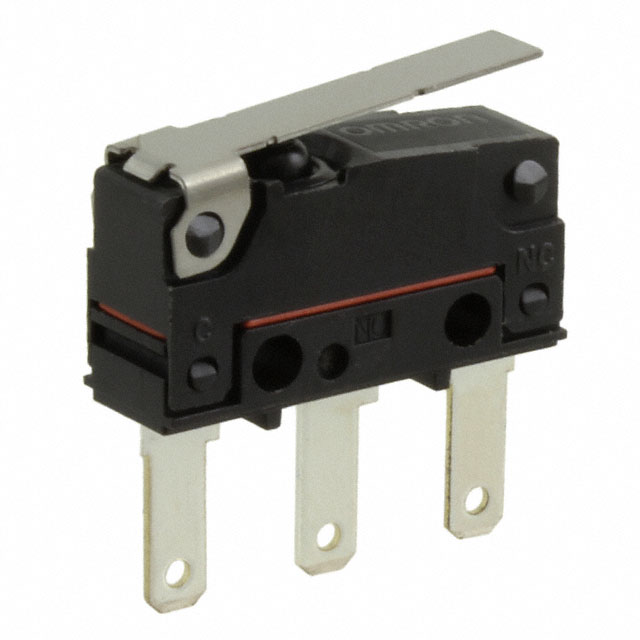

D2SW-P01L1T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-P01L1T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2SW-P01L1T
Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 64162 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$0.585

Product parameter
Data sheet

Product parameter

Part Number	D2SW-P01L1T	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64162 pcs	Data sheet	D2SW-P Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	D2SW-P
Release Force	5.099gf	Pretravel	-
Packaging	Bulk	Overtravel	0.030" (0.76mm)
Other Names	D2SW-P01L1T BY OMZ D2SW-P01L1T-ND D2SWP01L1T D2SWP01L1TBYOMZ Z4458	Operating Temperature	-20°C ~ 70°C
Operating Position	0.345" (8.8mm)	Operating Force	61gf
Mounting Type	Chassis Mount	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	200,000 Cycles	Differential Travel	0.031" (0.8mm)
Current Rating	100mA (AC/DC)	Circuit	SPDT
Actuator Type	Lever, Straight
