Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > PMEG3020CPA,115

PMEG3020CPA,115

PMEG3020CPA,115

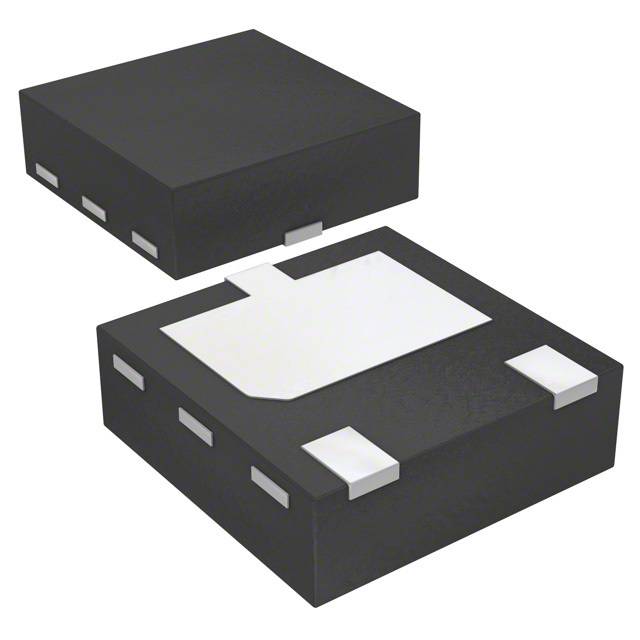

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMEG3020CPA,115 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PMEG3020CPA,115
Manufacturer	Nexperia
Description	DIODE ARRAY SCHOTTKY 30V 3HUSON
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 388291 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.192	$0.156	$0.106	$0.08	$0.06

Product parameter
Data sheet

Product parameter

Part Number	PMEG3020CPA,115	Manufacturer	Nexperia
Description	DIODE ARRAY SCHOTTKY 30V 3HUSON	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	388291 pcs	Data sheet	PMEG3020CPA
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	440mV @ 2A
Voltage - DC Reverse (Vr) (Max)	30V	Supplier Device Package	3-HUSON (2x2)
Speed	Fast Recovery = 200mA (Io)	Series	-
Reverse Recovery Time (trr)	50ns	Packaging	Original-Reel®
Package / Case	3-PowerUDFN	Other Names	1727-5205-6 568-6517-6 568-6517-6-ND
Operating Temperature - Junction	150°C (Max)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode	Detailed Description	Diode Array 1 Pair Common Cathode Schottky 30V 2A Surface Mount 3-PowerUDFN
Current - Reverse Leakage @ Vr	2mA @ 30V	Current - Average Rectified (Io) (per Diode)	2A
Base Part Number	PMEG3020CPA
