Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > PMEG3010ESBYL

PMEG3010ESBYL

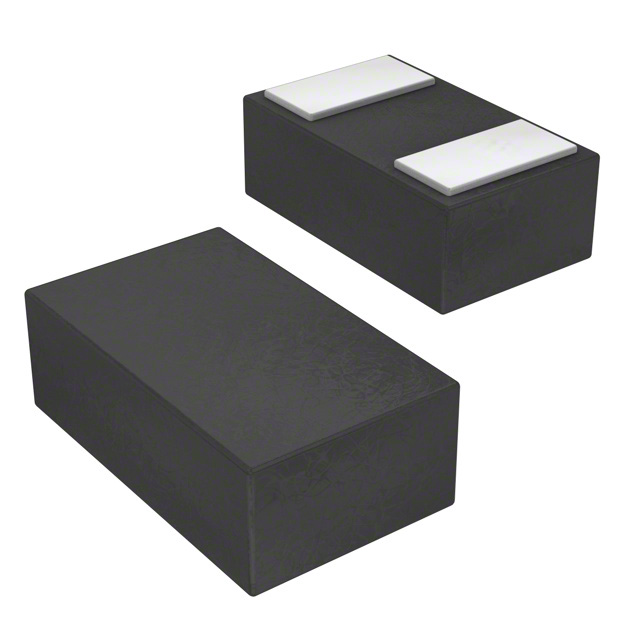

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMEG3010ESBYL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PMEG3010ESBYL
Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 1A DSN1006-2
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1388969 pcs
Reference Price (In US Dollars)	10000 pcs
Reference Price (In US Dollars)	$0.016

Product parameter
Data sheet

Product parameter

Part Number	PMEG3010ESBYL	Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 1A DSN1006-2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1388969 pcs	Data sheet	PMEG3010ESB
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	565mV @ 1A
Voltage - DC Reverse (Vr) (Max)	30V	Supplier Device Package	DSN1006-2
Speed	Fast Recovery = 200mA (Io)	Series	-
Reverse Recovery Time (trr)	3.2ns	Packaging	Tape & Reel (TR)
Package / Case	2-XDFN	Other Names	934068752315
Operating Temperature - Junction	150°C (Max)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 30V 1A Surface Mount DSN1006-2	Current - Reverse Leakage @ Vr	45µA @ 30V
Current - Average Rectified (Io)	1A	Capacitance @ Vr, F	32pF @ 10V, 1MHz
