Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > PMEG3020EGWJ

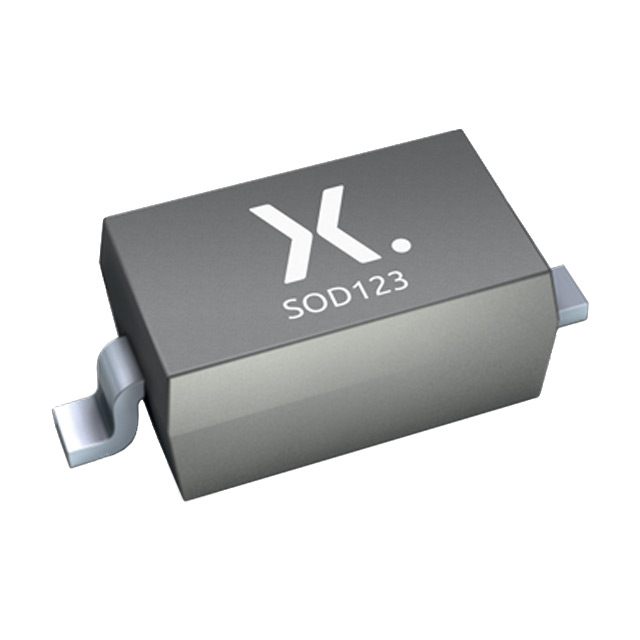

PMEG3020EGWJ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMEG3020EGWJ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PMEG3020EGWJ
Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 2A SOD123
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 757904 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.147	$0.109	$0.062	$0.041	$0.031

Product parameter
Data sheet

Product parameter

Part Number	PMEG3020EGWJ	Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 2A SOD123	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	757904 pcs	Data sheet	PMEG3020EGW
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	620mV @ 2A
Voltage - DC Reverse (Vr) (Max)	30V	Supplier Device Package	SOD-123
Speed	Fast Recovery = 200mA (Io)	Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)	Package / Case	SOD-123
Other Names	1727-7332-1	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 30V 2A Surface Mount SOD-123
Current - Reverse Leakage @ Vr	1mA @ 30V	Current - Average Rectified (Io)	2A
Capacitance @ Vr, F	60pF @ 1V, 1MHz
