Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > PMEG3020CEP,115

PMEG3020CEP,115

PMEG3020CEP,115

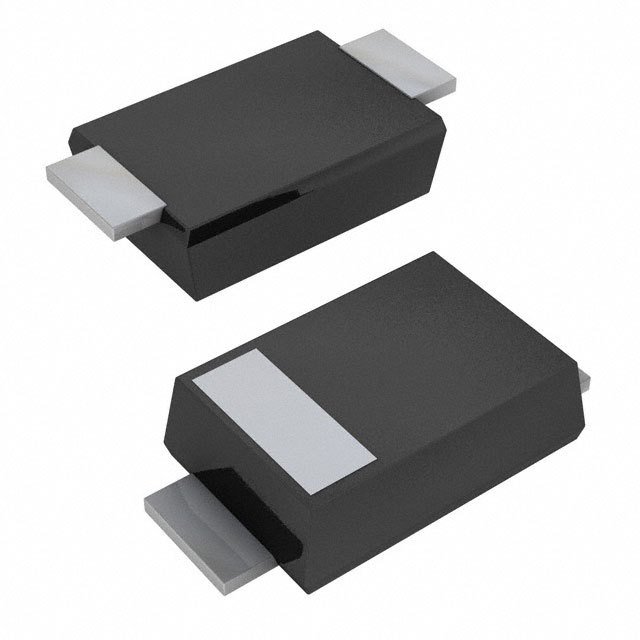

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMEG3020CEP,115 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PMEG3020CEP,115
Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 2A SOD128
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 414870 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.183	$0.149	$0.101	$0.076	$0.057

Product parameter
Data sheet

Product parameter

Part Number	PMEG3020CEP,115	Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 2A SOD128	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	414870 pcs	Data sheet	PMEG3020CEP
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	420mV @ 2A
Voltage - DC Reverse (Vr) (Max)	30V	Supplier Device Package	CFP5
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Cut Tape (CT)	Package / Case	SOD-128
Other Names	1727-5204-1 568-6516-1 568-6516-1-ND	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 30V 2A Surface Mount CFP5	Current - Reverse Leakage @ Vr	1.5mA @ 30V
Current - Average Rectified (Io)	2A	Capacitance @ Vr, F	170pF @ 1V, 1MHz
Base Part Number	PMEG3020
