Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > PMEG3010ER,115

PMEG3010ER,115

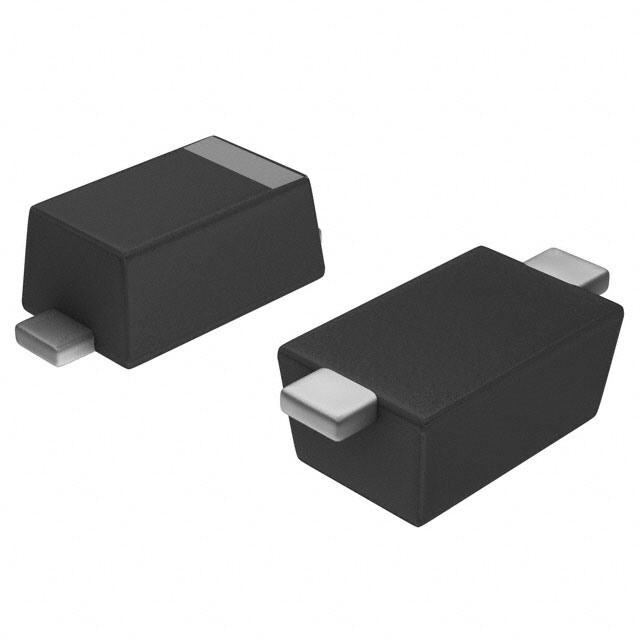

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMEG3010ER,115 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PMEG3010ER,115
Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 1A SOD123W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 766912 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs	30000 pcs
Reference Price (In US Dollars)	$0.037	$0.035	$0.033	$0.03

Product parameter
Data sheet

Product parameter

Part Number	PMEG3010ER,115	Manufacturer	Nexperia
Description	DIODE SCHOTTKY 30V 1A SOD123W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	766912 pcs	Data sheet	PMEG3010ER
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	360mV @ 1A
Voltage - DC Reverse (Vr) (Max)	30V	Supplier Device Package	CFP3
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SOD-123W
Other Names	1727-5201-2 568-6513-2 568-6513-2-ND 934061458115 PMEG3010ER,115-ND PMEG3010ER115	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 30V 1A Surface Mount CFP3	Current - Reverse Leakage @ Vr	1.5mA @ 30V
Current - Average Rectified (Io)	1A	Capacitance @ Vr, F	170pF @ 1V, 1MHz
Base Part Number	PMEG3010
