Home > Products > Switches > Rocker Switches > SW3822D/UC

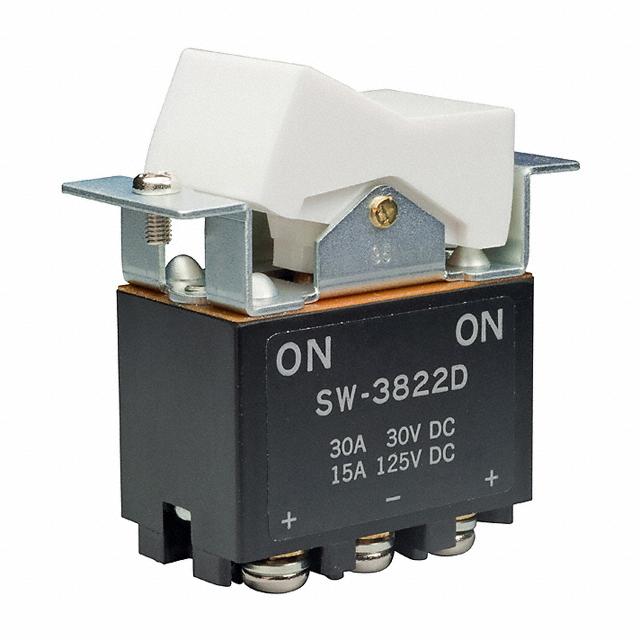

SW3822D/UC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SW3822D/UC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SW3822D/UC
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 30A 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 4678 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$9.736	$8.967	$8.711	$8.455
	$8.199	$7.43	$6.918

Product parameter
Data sheet

Product parameter

Part Number	SW3822D/UC	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 30A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4678 pcs	Data sheet	SW Series Medium Cap Rocker Datasheet
Category	Switches	Voltage Rating - DC	30V
Termination Style	Screw Terminal	Switch Function	On-On
Series	SW	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	SW3822D/UC-RO SW3822D/UC-RO-ND SW3822DUC
Operating Temperature	-10°C ~ 70°C	Mounting Type	Panel Mount, Flange
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch DPDT 30A (DC) Panel Mount, Flange
Current Rating	30A (DC)	Color - Actuator/Cap	White
Circuit	DPDT	Actuator Type	Concave (Standard V)
Actuator Marking	No Marking
