Home > Products > Switches > Rocker Switches > SW3821D/UC

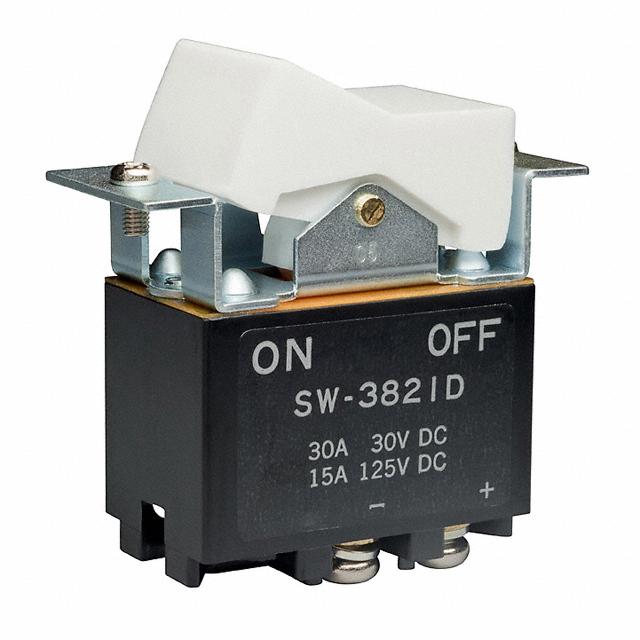

SW3821D/UC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SW3821D/UC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SW3821D/UC
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPST 30A 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 4689 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$9.89	$9.107	$8.847	$8.587
	$8.327	$7.546	$7.026

Product parameter
Data sheet

Product parameter

Part Number	SW3821D/UC	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPST 30A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4689 pcs	Data sheet	SW Series Medium Cap Rocker Datasheet
Category	Switches	Voltage Rating - DC	30V
Termination Style	Screw Terminal	Switch Function	On-Off
Series	SW	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	360-2930 SW3821D/UC-ND SW3821D/UC-RO SW3821D/UC-RO-ND SW3821DUC
Operating Temperature	-10°C ~ 70°C	Mounting Type	Panel Mount, Flange
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch DPST 30A (DC) Panel Mount, Flange
Current Rating	30A (DC)	Color - Actuator/Cap	White
Circuit	DPST	Actuator Type	Concave (Standard V)
Actuator Marking	No Marking
