Home > Products > Switches > Rocker Switches > SW3823D

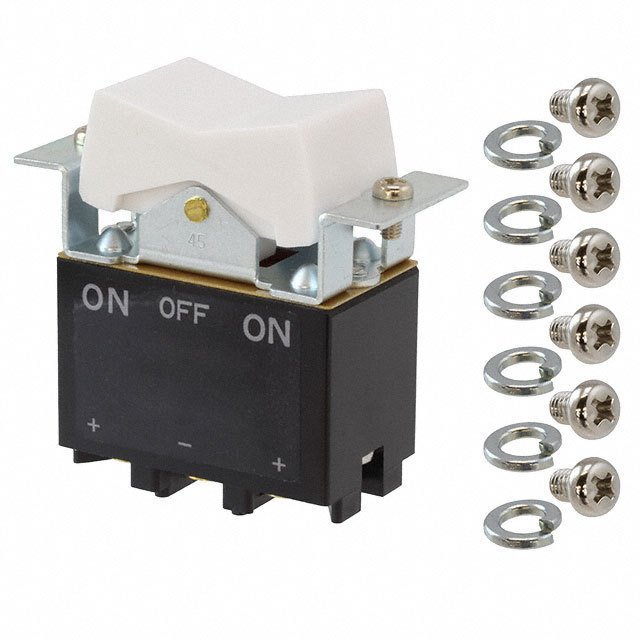

SW3823D

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SW3823D with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SW3823D
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 30A 30V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 4990 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$10.21	$9.404	$9.136
	$8.867	$8.598	$7.792

Product parameter
Data sheet

Product parameter

Part Number	SW3823D	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 30A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4990 pcs	Data sheet	SW Series Medium Cap Rocker Datasheet
Category	Switches	Voltage Rating - DC	30V
Termination Style	Screw Terminal	Switch Function	On-Off-On
Series	SW	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	360-3312 SW3823D-ND SW3823D-RO SW3823D-RO-ND
Operating Temperature	-10°C ~ 70°C	Mounting Type	Panel Mount, Flange
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	25,000 Cycles	Detailed Description	Rocker Switch DPDT 30A (DC) Panel Mount, Flange
Current Rating	30A (DC)	Color - Actuator/Cap	White
Circuit	DPDT	Actuator Type	Concave (Standard V)
Actuator Marking	No Marking
