Home > Products > Switches > Rocker Switches > SW3822

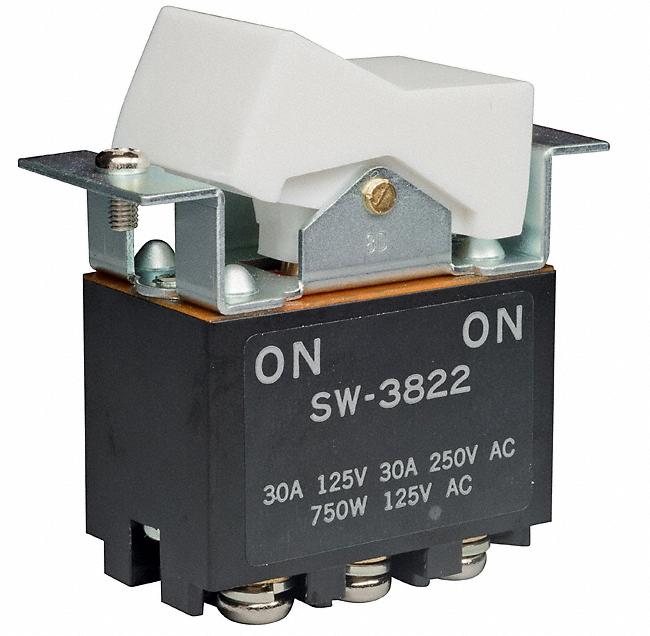

SW3822

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SW3822 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SW3822
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 30A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6544 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$8.244	$7.593	$7.376	$7.159
	$6.942	$6.291	$5.858

Product parameter
Data sheet

Product parameter

Part Number	SW3822	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 30A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6544 pcs	Data sheet	SW Series Medium Cap Rocker Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-On	Series	SW
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-1502 360-1502-ND SW3822-RO SW3822-RO-ND	Operating Temperature	-10°C ~ 70°C
Mounting Type	Panel Mount, Flange	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	25,000 Cycles
Detailed Description	Rocker Switch DPDT 30A (AC/DC) 125V Panel Mount, Flange	Current Rating	30A (AC/DC)
Color - Actuator/Cap	White	Circuit	DPDT
Actuator Type	Concave (Standard V)	Actuator Marking	No Marking
