Home > Products > Switches > Rocker Switches > GW22LCH

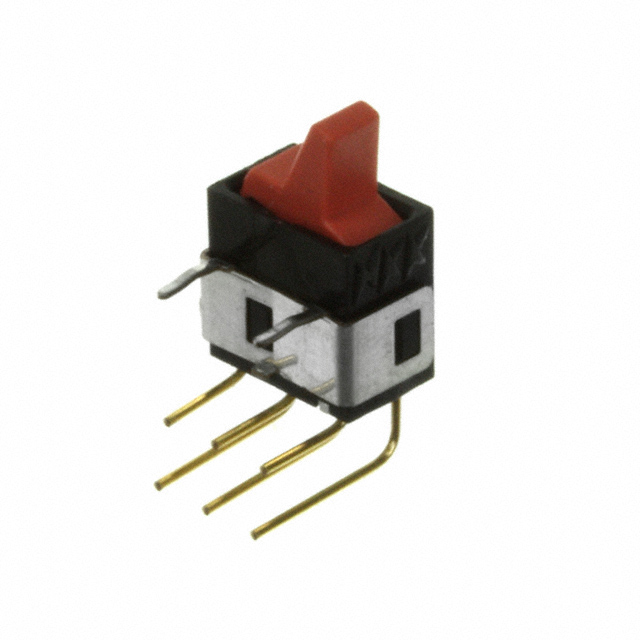

GW22LCH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GW22LCH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GW22LCH
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 39718 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.215	$1.186	$1.13	$1.074
	$1.017	$0.989	$0.961	$0.848

Product parameter
Data sheet

Product parameter

Part Number	GW22LCH	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	39718 pcs	Data sheet	GW Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	GW
Panel Cutout Dimensions	-	Packaging	Tray
Other Names	360-3788 GW22LCH-ND GW22LCH-RO GW22LCH-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Sealed - Flux Protection	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch DPDT 0.4VA (AC/DC) 28V Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Red	Circuit	DPDT
Actuator Type	Paddle	Actuator Marking	No Marking
