Home > Products > Switches > Rocker Switches > GW22RBH

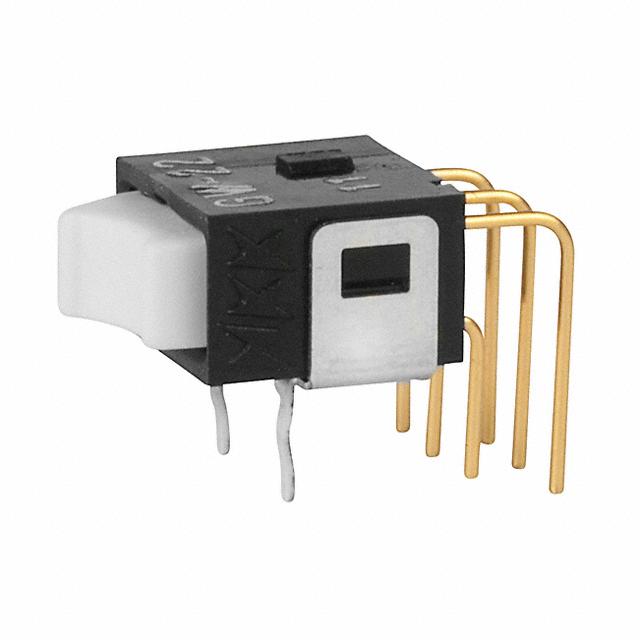

GW22RBH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GW22RBH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GW22RBH
Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 46850 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.169	$1.143	$1.088	$1.034
	$0.979	$0.952	$0.925	$0.816

Product parameter
Data sheet

Product parameter

Part Number	GW22RBH	Manufacturer	NKK Switches
Description	SWITCH ROCKER DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46850 pcs	Data sheet	GW Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	GW
Panel Cutout Dimensions	-	Packaging	Tray
Other Names	GW22RBH-RO GW22RBH-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Sealed - Flux Protection	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch DPDT 0.4VA (AC/DC) 28V Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	White	Circuit	DPDT
Actuator Type	Concave (Curved)	Actuator Marking	No Marking
