Home > Products > Switches > Rocker Switches > GRB238D801BBZ

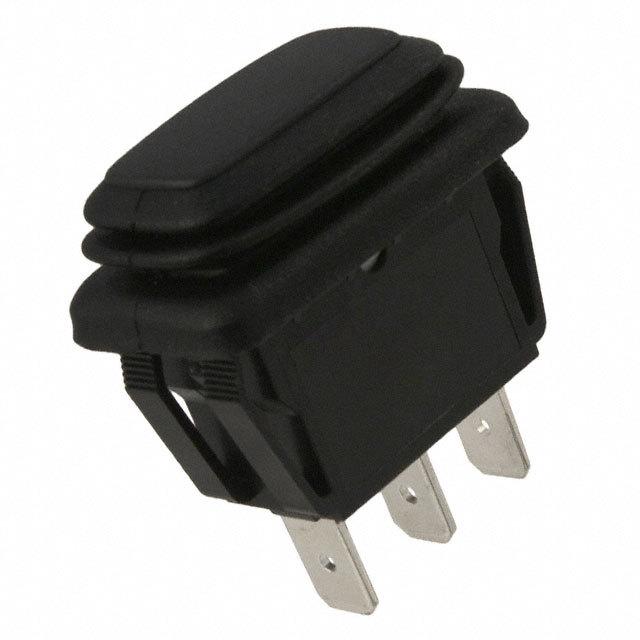

GRB238D801BBZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GRB238D801BBZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GRB238D801BBZ
Manufacturer	CW Industries
Description	SWITCH ROCKER SPDT 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 52539 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.917	$0.876	$0.837	$0.797	$0.757
	$0.737	$0.697	$0.618	$0.598

Product parameter
Data sheet

Product parameter

Part Number	GRB238D801BBZ	Manufacturer	CW Industries
Description	SWITCH ROCKER SPDT 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52539 pcs	Data sheet	GRB238D801BBZ Drawing
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Off-On	Series	GRB
Panel Cutout Dimensions	Rectangular - 27.60mm x 13.80mm	Packaging	Bulk
Other Names	CWI509 GRB238D801BBZ-ND	Operating Temperature	-25°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	-
Detailed Description	Rocker Switch SPDT 16A (AC), 10A (DC) 125V Panel Mount, Snap-In	Current Rating	16A (AC), 10A (DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Flat	Actuator Marking	No Marking
